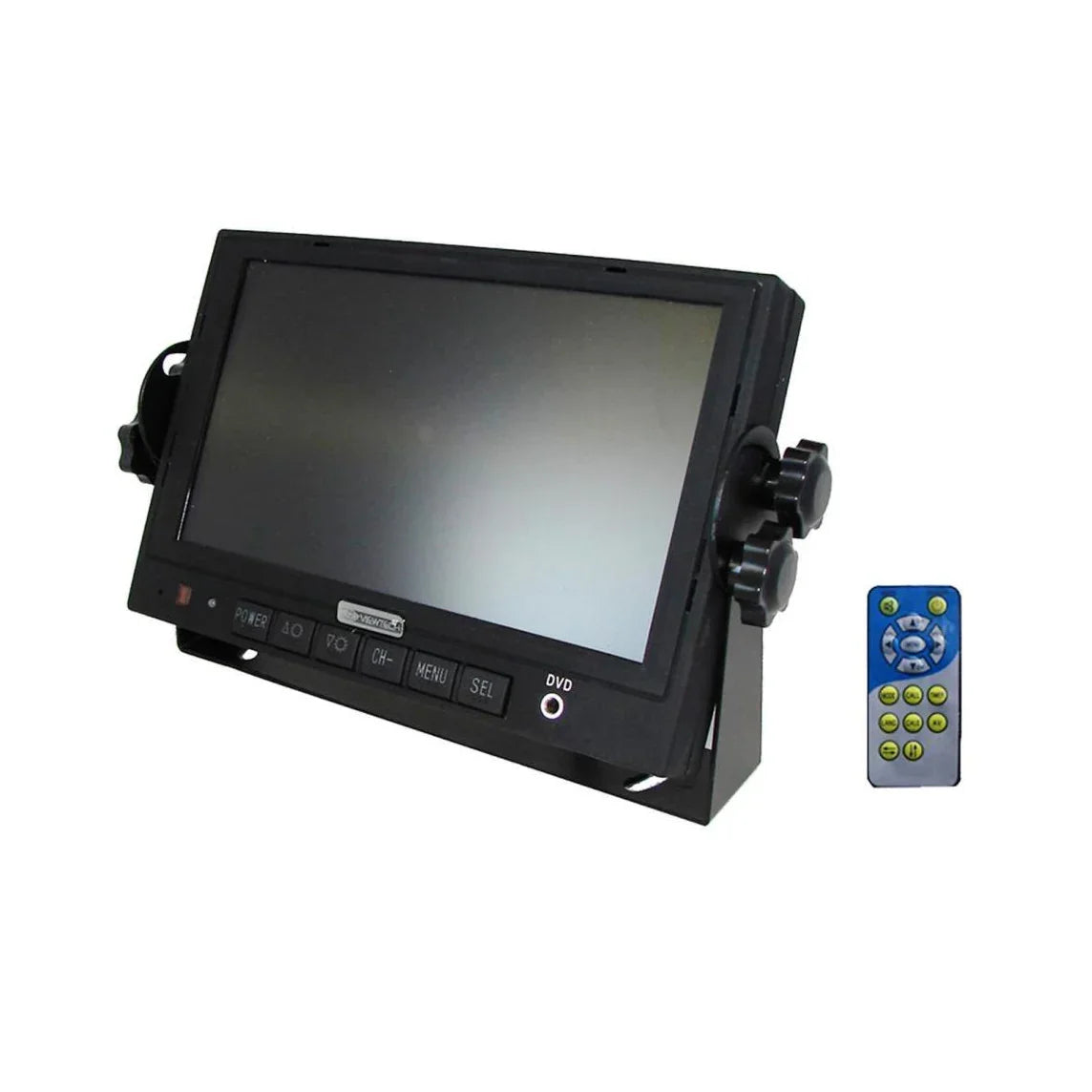

Viewtech 7 inch Digital LCD HD Monitor

Viewtech 7 Inch Monitor Key Features:

• 7” digital wide-angle LCD screen with 800 × 480 resolution and 400cd/m² brightness

• Four video inputs: 3 via rear wiring loom (with 12V power output) + 1 front RCA input

• Smart auto-switching with 10V–36V trigger wires (ideal for reversing and side cameras)

• Rugged rubber-coated casing for high vibration environments

• Wide 10–32V input voltage range with smooth 12V output to power each camera

• Reverse grid overlay available on Camera Input 3

• Auto-illuminating buttons and included IR remote for easy control

📦 What’s Included with Viewtech 7 Inch Monitor:

• Viewtech VT7HD monitor

• Rear wiring loom (3 camera inputs with 12V output + trigger wires)

• Dash mount bracket

• U-bracket for overhead or flat mounting

• Flush mount kit

• Sun visor

• Infrared remote control

• 1 x RCA cable adaptor

• 1 x Front input jack RCA adaptor

• User manual

📐Viewtech 7 Inch Monitor Specifications:

• Screen Size: 7" digital wide-angle panel

• Resolution: 800 × 480

• Brightness: 400cd/m²

• Contrast Ratio: 500:1

• Power Supply: 10V–32V DC

• Power Consumption: 12W

• Dimensions: 182mm (W) × 122mm (H) × 26mm (D)

• Camera Triggers: 3x (10V–36V)

• Colour System: PAL/NTSC Auto

• Model Code: VT7HD
