Power Over Ethernet Camera: Easy Installation & Security in New Zealand

Picture this: running just one cable to your security camera that handles both power and video.



That’s the simple but brilliant idea behind a Power over Ethernet (PoE) camera system.



It’s a technology that pushes both low-voltage electricity and high-speed data through a single, standard network cable.





What Exactly Is a Power Over Ethernet Camera System?

A Power over Ethernet camera is a type of digital surveillance camera that gets its power directly from the same Ethernet cable that transmits its video footage.



It completely does away with the need for separate power supplies or finding an electrical outlet near every camera.



Think of it like a garden hose that delivers both water and fertiliser at the same time. This clean, all-in-one solution is a game-changer for businesses all over New Zealand.



Whether you're securing a remote farm down in Southland, keeping an eye on a busy Wellington construction site, or ensuring safety on a boat in the Bay of Plenty, PoE gives you incredible flexibility.



The freedom to place cameras exactly where you need them, without being tied to a power socket, is a massive advantage.

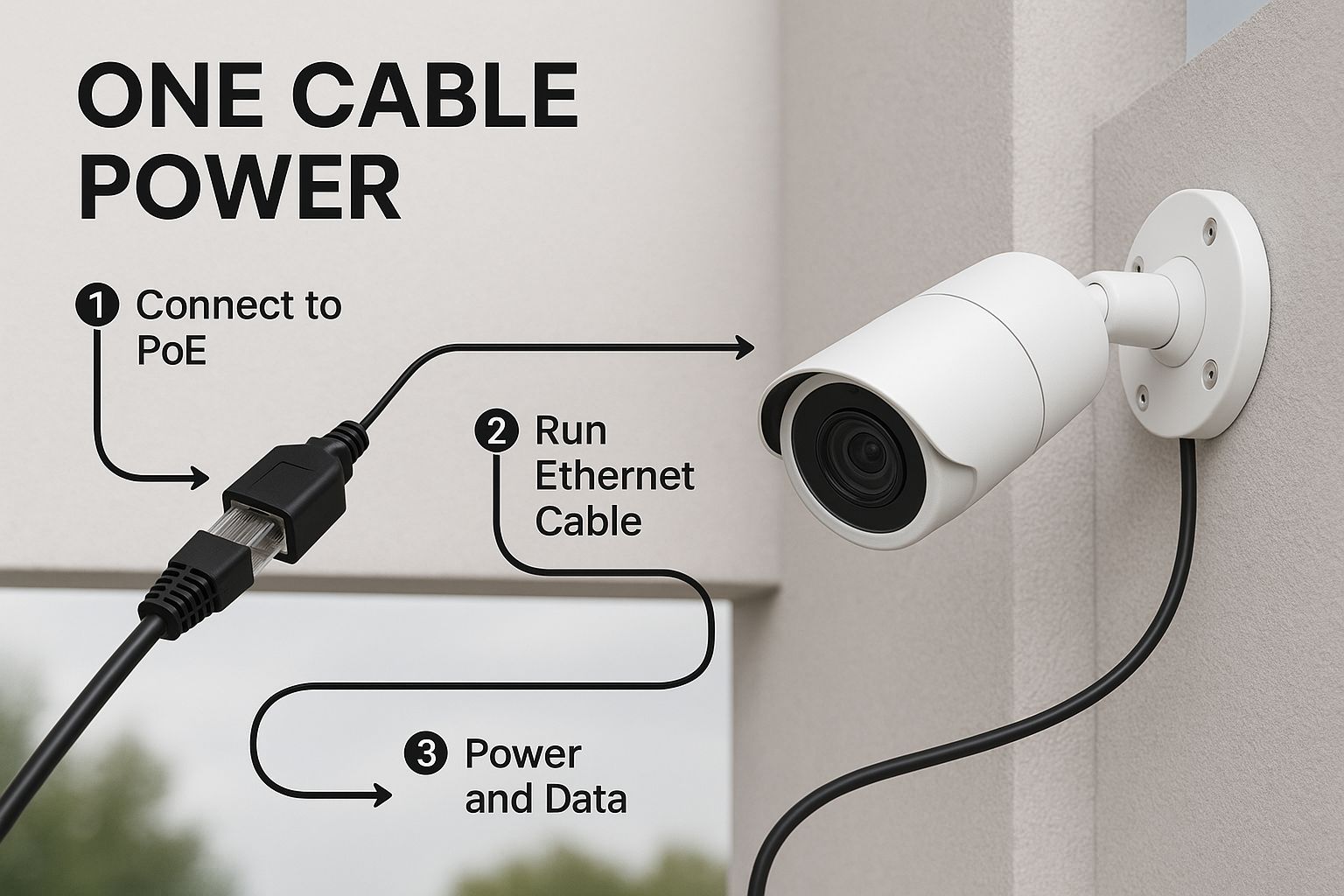

This infographic shows just how straightforward the single-cable setup for a PoE camera really is.





As you can see, one Ethernet cable handles everything, which massively simplifies the whole wiring process.

Why This Technology Is a Smart Investment

The real magic of PoE lies in its efficiency and how easily it can scale up.



By cutting the amount of cabling in half, installation becomes quicker, neater, and cheaper, especially when you're covering large or tricky areas.



This is a huge deal for industries where any downtime is expensive and solid security is a non-negotiable part of health and safety.



Plus, because you have a central power source for your entire camera network, you can protect it with a single Uninterruptible Power Supply (UPS). This means your cameras will keep recording even if the power goes out.

A PoE system isn’t just about convenience; it’s about building a tough, reliable, and future-proof security setup that can grow right alongside your business.

To give you an idea of where this technology is heading, have a look at advanced systems like cloud-managed Meraki security cameras, which often use PoE to make deployment a breeze.



For a bigger picture of what modern security looks like, you can find a great overview in this comprehensive guide to video surveillance camera systems.



PoE technology is really the backbone of today's CCTV camera networks. It offers far better image quality and more advanced features than the old analogue systems ever could.

PoE Camera vs Traditional CCTV: A Quick Comparison

To really see the difference, it helps to put the two systems side-by-side.



Here’s a quick comparison that highlights why so many are making the switch from old-school analogue CCTV to modern PoE systems.



Feature	Power over Ethernet (PoE) Camera	Traditional CCTV Camera
Cabling	Single Ethernet cable for both power and data	Separate cables required for power and video transmission
Installation	Simpler, faster, and more flexible placement	More complex and time-consuming, tied to power outlets
Image Quality	High-definition digital video (HD, 4K)	Lower resolution analogue signal, prone to interference
Scalability	Easy to add new cameras to the network	Adding cameras often requires significant new wiring
Power Reliability	Can be backed up centrally with a single UPS	Each camera needs its own backup or is vulnerable to power cuts
Features	Supports advanced features like AI analytics and remote access	Limited features, primarily focused on basic recording

As the table shows, PoE cameras come out on top in nearly every category that matters for a modern security system—from ease of installation to the quality of the footage itself. It’s a clear step forward.





How PoE Camera Systems Work in Practice





To really get your head around the power of a Power over Ethernet camera system, it’s worth looking at how all the pieces fit together.



It's a surprisingly simple setup that delivers incredible reliability—something absolutely essential for any serious surveillance job, from a construction site in Auckland to a rural property in the Waikato.



At its core, the system has three key parts that create a seamless flow of both power and data.

The Three Pillars of a PoE System

A functioning PoE setup is a bit like a well-organised team where everyone has a specific role.



When all three parts work in harmony, you end up with a stable and seriously efficient surveillance network.



1. The PoE Camera: This is the 'eyes' of your operation. It's a digital IP camera built specifically to receive its low-voltage power straight through its Ethernet port, which means you can forget about running a separate power cable to it.
2. The Ethernet Cable: Think of this as the system's nervous system. A single, standard network cable (like a Cat6) acts as a two-way street, carrying the electrical current to the camera and the high-definition video data back from it.
3. The Power Sourcing Equipment (PSE): This is your central command, the brains of the whole operation. The PSE is the device that actually injects power into the Ethernet cable. It’s smart, too—it first checks if a connected device is PoE-compatible before sending any electricity, making the whole setup incredibly safe.



The most common kind of PSE is a PoE network switch. This device acts as a hub for your entire camera network, with multiple ports to plug your cameras directly into.



It manages both power delivery and data traffic for all your cameras, making it a clean, all-in-one solution.

For anyone looking at a new installation, a PoE switch is easily the most streamlined and scalable way to go. It centralises all your connections, makes troubleshooting a breeze, and simplifies adding more cameras down the track.

But what if you only need to add a single PoE camera to an existing network that doesn't have a PoE switch? That’s where a handy little device comes into play.

When You Only Need One or Two Cameras

For smaller jobs or for upgrading an existing setup, a PoE injector is the perfect tool for the job.



A PoE injector is a small adapter that sits between your standard, non-PoE network switch and your new camera.



You just plug an Ethernet cable from your normal switch into the injector's 'Data In' port, and then run another Ethernet cable from the injector's 'Power + Data Out' port to your camera.



The injector takes the data from your network, adds the necessary electrical power to the line, and sends both down to your camera. It's a cost-effective and efficient way to power one or two cameras without needing to replace your main network switch.



If you're looking for pointers on getting everything connected, our comprehensive DIY CCTV installation guide has plenty of practical tips for a successful setup.

Understanding PoE Standards

You'll quickly find that not all PoE is created equal. Different cameras have different power needs, which is why technical standards exist to make sure everything works safely and correctly.



These standards are managed by the Institute of Electrical and Electronics Engineers (IEEE).



You don’t need to be an electrical engineer, but knowing the basics will help you match your gear properly.



• IEEE 802.3af (PoE): This is the original standard, providing up to 15.4 watts of power. It's more than enough for most basic, fixed-position IP cameras that don’t have moving parts or heaters.
• IEEE 802.3at (PoE+): This is a beefier standard that delivers up to 30 watts. You'll need this for more demanding cameras, like a Pan-Tilt-Zoom (PTZ) camera that requires extra juice to run its motors.
• IEEE 802.3bt (PoE++): As the latest and most powerful standard, this offers a hefty 60 to 100 watts. This is reserved for high-power gear like advanced PTZ cameras with built-in heaters for cold environments or powerful infrared illuminators for night vision.



Choosing the right standard is crucial. If you under-power a camera, it will malfunction or fail completely. Getting the match right ensures your system is stable, reliable, and future-proof.



Always check the power requirements of your camera and make sure your switch or injector can supply it.





Key Benefits of Choosing a PoE Camera Solution

So, why are so many savvy New Zealand businesses making the switch to a Power over Ethernet camera system?



It often boils down to three big advantages that solve real-world security and surveillance challenges in our unique environment.



This isn't just about a tidy setup; it's about better reliability, more flexibility, and real long-term value.



From the rolling hills of a Canterbury farm to the busy docks of Tauranga, these benefits make a massive difference. Let's break down exactly what makes PoE such a smart choice for modern security needs.





Simplified Installation and Flexibility

The first thing you’ll notice about a PoE system is just how simple the installation is.



Because you only need to run a single Ethernet cable to each camera for both power and data, you cut the complexity right down.



This single-cable approach means:



• Faster Deployment: Installation is much quicker because there’s no need to run separate power lines or call in a registered electrician for high-voltage wiring.
• Greater Placement Freedom: You’re no longer stuck placing cameras only where there's a nearby power socket. This is a game-changer for sprawling agricultural properties, large construction sites, or marine vessels where power outlets are few and far between.
• Cleaner Aesthetics: With half the cabling, the final job looks much neater and less intrusive. This is a big plus for customer-facing areas like retail shops or hospitality venues.



Imagine you need to monitor a remote stockyard or a distant corner of a commercial depot. With PoE, you can run one safe, low-voltage cable exactly where the camera needs to be, without the huge cost and hassle of trenching new power lines.



This flexibility is a core reason it’s becoming so popular.

Unmatched Reliability and Stability

When it comes to security, reliability is non-negotiable. A camera that drops its connection or runs out of battery at a critical moment is a complete failure of your system.



This is where the hardwired nature of PoE really shines.



Unlike Wi-Fi cameras, which can be affected by signal interference or network congestion, a cabled PoE connection is rock-solid. You simply don't have to worry about signal dropouts.



And compared to battery-powered models that need constant checking and changing, a PoE camera gets a continuous, stable supply of power.



This is vital for dependable health and safety monitoring and making sure your surveillance system is always on when you need it most.

By centralising the power source at the PoE switch or NVR, you can easily connect the whole system to an Uninterruptible Power Supply (UPS). This simple step means your cameras keep recording even during a power cut, giving you true peace of mind.

For anyone considering comprehensive property coverage, understanding the benefits of a hardwired connection is key.

You can dive deeper into this by reading our guide on selecting the best outdoor security camera for New Zealand conditions.

Long-Term Cost-Effectiveness

While the initial cost for a quality PoE camera or switch might look a bit higher than some consumer-grade options, the long-term savings tell a completely different story.



The real value comes from installation and maintenance.



By getting rid of the need for an electrician to install power points at every camera location, you can save hundreds, if not thousands, of dollars in labour costs alone—especially on larger installations with multiple cameras.



Over the lifetime of the system, the reduced maintenance needs and lower installation expenses make a Power over Ethernet camera a far smarter and more economical investment for any serious security setup.





Choosing the Right PoE Camera For Your Needs

Picking the ideal Power over Ethernet camera isn't as simple as grabbing one off the shelf at a big department store.



It’s all about matching the right tech to the unique demands of your New Zealand environment.



A camera that works perfectly in a sheltered Auckland retail space will quickly fail on a windswept farm gate in Southland.



Getting this choice right from the start is the key to building a surveillance system you can actually rely on. This is where specialist suppliers with deep product knowledge are invaluable.



First up, you need to understand that not all cameras are built to handle our country’s often harsh and unpredictable weather. This is where the IP rating becomes one of the most critical specs to check.

Decoding Durability with IP Ratings

An IP (Ingress Protection) rating is a straightforward, two-digit code that tells you exactly how well a camera's housing is sealed against solids (like dust and dirt) and liquids (like rain and sea spray).



For any camera destined for the great Kiwi outdoors, a high IP rating is completely non-negotiable.



Let's look at a rating like IP67.



• The first digit (6) means the camera is totally dust-tight. No fine dust or dirt can sneak inside and mess with the sensitive electronics.
• The second digit (7) means the camera is fully waterproof. It can even be submerged in up to one metre of water for 30 minutes without giving up.



For our local conditions, where we get everything from driving rain to salty coastal air, an IP67 rating ensures your investment is properly protected and will keep performing for years to come.



Think of it as the baseline for any serious outdoor surveillance camera installation.

Matching the Camera Type to the Task

Once you’ve confirmed a camera is tough enough for the job, the next step is choosing the right shape and style.



Different camera designs are built for specific situations, and picking the right one makes it more effective and discreet.



A rugged bullet camera, for example, is a great choice for watching over a driveway, a farm gate, or the outside of a commercial building. Their obvious, directional shape acts as a clear deterrent, and they're often packed with powerful infrared (IR) LEDs for excellent night vision over long distances.



On the other hand, a dome camera is a better fit for places where you want a more subtle presence, like inside a retail mobile shop, an office reception, or under the eaves of a house. Their vandal-resistant casings and less obvious viewing direction make them perfect for public-facing areas.

Choosing the right camera type isn't just about how it looks; it's a strategic decision that directly impacts how well your security works. The goal is to pick a tool that’s perfectly suited to its specific environment and what you need it to watch.

Key Specifications That Truly Matter

Beyond the physical shape and toughness, the technical specs are what determine the quality and intelligence of your footage.

Resolution Is Key
Resolution dictates how much detail you can capture. While 1080p (Full HD) is a decent starting point, a 4K camera gives you four times the number of pixels. That incredible clarity can be the difference between seeing a blurry shape and being able to clearly identify a face or read a number plate from a distance.

Night Vision Performance
Security threats don’t clock off when the sun goes down. Look for cameras with high-quality IR illuminators that deliver crisp black-and-white video in complete darkness. Make sure to check the stated IR range to ensure it can cover the entire area you need to monitor.

Advanced AI Features
Modern PoE cameras are getting smarter all the time. Features powered by artificial intelligence can turn a simple recording device into a proactive security guard. Keep an eye out for capabilities like:



• Object Tracking: The camera can automatically follow a person or vehicle as it moves across the screen.
• Intrusion Detection: You can draw virtual lines or zones, and the camera will only alert you when a person or vehicle crosses them, ignoring annoying things like swaying trees or pets.
• Facial Recognition: More advanced systems can identify authorised staff or flag unfamiliar individuals.



These smart features slash the number of false alarms and help you focus on the events that actually matter.



For trusted performance and cutting-edge features, brands like Dahua, which are widely available in New Zealand, offer solid, reliable solutions.



Chatting with a specialist supplier ensures you get expert advice tailored to your exact needs, guaranteeing a CCTV camera solution that is built to last.





Integrating PoE Cameras with Your Communication Systems

A modern Power over Ethernet camera isn't just a standalone recording device.



Think of it as a powerful data hub, ready to become the core of a larger, fully connected safety and communication ecosystem.



When you integrate your cameras with other systems, you unlock their true potential, turning passive surveillance into an active, responsive security strategy.



The first step is centralising your video feeds. A Network Video Recorder (NVR) acts as the brain of your CCTV camera network.



It’s a dedicated device that securely records and stores footage from all your IP cameras, giving you a single, reliable point to manage and review everything.





Unifying Surveillance with Two-Way Radio Networks

The real magic happens when your cameras start talking to your other communication tools.



Because PoE cameras are IP-based, they can be set up to trigger actions right across your network. This creates a seamless link between what your cameras see and how your team on the ground responds.



Picture this scenario on a busy New Zealand construction site:



1. A Dahua PoE camera with advanced analytics detects a vehicle entering a restricted zone after hours.
2. This event instantly triggers an automated alert.
3. The alert is sent directly over the site’s Tait or Motorola two way radio network, notifying all security personnel with a clear, concise message.



This instant communication loop turns a passive recording into immediate, actionable intelligence.



Staff don't have to be glued to a monitor; they’re alerted in real-time, allowing them to respond faster and more effectively. This level of integration is a cornerstone of modern health and safety protocols.

By connecting your camera alerts to your radio network, you bridge the gap between seeing an event and acting on it. This proactive approach dramatically improves security efficiency and personnel safety.

Overcoming Connectivity Challenges in Remote New Zealand

What happens when you need to keep an eye on an asset in a remote location where standard broadband is a no-go?



This is a common challenge for many Kiwi industries, from agriculture in the high country to forestry operations deep in the bush.



Fortunately, modern connectivity solutions make it possible to stream and manage your PoE camera system from almost anywhere.



Reliable cellular networks are often the first port of call. Using a cellular router, you can give your NVR and cameras a stable internet connection for remote viewing and management. For an added layer of security, it's smart to implement secure remote access using a Virtual Private Network (VPN).



For the most isolated spots, where even a cell signal can't reach, Starlink satellite technology is a game-changer. It provides high-speed, low-latency internet capable of transmitting high-definition video feeds from the most remote corners of New Zealand.



This ensures your security perimeter has no blind spots, no matter the geography.



The need for robust digital infrastructure is clear. While specific stats for the New Zealand PoE camera market are hard to come by, the parallel growth in the country's data centre physical security market tells a strong story.



This sector is projected to grow from USD 26.33 million in 2025 to USD 53.75 million, highlighting a major national investment in advanced security infrastructure. This trend reflects the same drive for security that fuels the adoption of integrated PoE systems.





Common Questions About PoE Camera Systems

As more Kiwis look to upgrade their security, it's only natural to have a few questions about how a Power over Ethernet camera system works in the real world.



Moving to a new technology can feel like a big step, so we've put together answers to the most common queries we hear.



Our goal here is to clear up any final uncertainties and give you the last few pieces of the puzzle so you can make a confident decision for your business or property.

What Is the Maximum Distance for a PoE Camera Cable?

That's a great, practical question. The official industry standard for a single run of Ethernet cable, PoE included, is 100 metres (or 328 feet).



For most commercial, rural, and home setups across New Zealand, this is more than enough distance to get the job done.



But we know plenty of properties, especially farms or large industrial sites, need to cover much more ground.



If your camera needs to be further than 100 metres away, you don't have to give up on PoE. A simple device called a PoE extender or a PoE-powered switch can be used to boost the signal and power for another 100 metres.



For really long distances—like connecting a gatehouse to a main building hundreds of metres away—the professional approach is to use fibre optic cable to bridge the main gap.

This guarantees a perfect, high-speed connection with zero risk of power drop or signal loss. For any complex or large-scale job, we always recommend getting a professional in to make sure your system works flawlessly from day one.

Can I Use Any Ethernet Cable for My PoE Cameras?

Technically, an older cable might get a signal across, but we strongly recommend using at least Category 5e (Cat5e) cabling for your power over ethernet camera system.



For any new installation, though, you should be using Category 6 (Cat6). It’s the modern standard for good reason.



Cat6 cables have thicker, better-quality copper conductors built to handle both high-resolution video and the electrical current of PoE safely and efficiently.



Using cheap, inferior cable can lead to poor performance, power drops, and can even be a safety hazard.

Investing in high-quality, pure copper Cat6 cabling from the start is a smart, future-proof move. It ensures reliable power delivery, protects your camera investment, and will easily handle the higher power and faster speeds of tomorrow's tech.

Do I Need a Special Recorder for PoE Cameras?

Yes, you do. You’ll need a Network Video Recorder (NVR), which is specifically designed to work with digital IP cameras like your PoE models.



This is a step up from the older Digital Video Recorders (DVRs) that were built for outdated analogue CCTV systems.



The easiest, most streamlined option is an NVR with built-in PoE ports right on the back. This turns your recorder into the central hub for the whole system.



You just plug each cctv camera directly into a port, and the NVR automatically supplies power and starts managing the video feed. It’s a true plug-and-play setup.



If you already have an NVR without PoE ports, you can still make it work. You'll just need a separate PoE switch. Your cameras plug into the switch to get their power and data, and the switch then connects to your network.



Your NVR will find the cameras on the network and record from there. Just be sure to check with your supplier that your chosen NVR and cameras are compatible to ensure a smooth setup.

Are PoE Cameras a Good Option for Remote Areas Without Power?

Absolutely, but you have to think about it a bit differently. The real magic of a PoE camera is in simplifying the wiring where you already have a network connection.



For those truly off-grid spots common across rural New Zealand, other technologies usually step in.



We're seeing a big trend towards more versatile power solutions. Kiwis are increasingly looking for security cameras that can handle our diverse weather while providing reliable surveillance, which has led to a boom in battery-powered and solar-powered cameras.



While there isn't specific data on PoE adoption in New Zealand, the market shows a huge interest in using solar panels for eco-friendly power—a principle that fits right in with PoE's focus on energy efficiency. For more on this trend, you can explore the demand for modern security cameras in NZ.



This just goes to show that while PoE is perfect for simplifying wired setups, the market also offers excellent wireless and solar solutions for those places where running a cable just isn't practical.



---

Ready to build a reliable, high-performance surveillance system tailored for New Zealand conditions? The expert team at Mobile Systems Limited is here to help.

We design and supply robust communication and security solutions, from a single power over ethernet camera to a fully integrated network.

Explore our custom communication and security solutions at Mobile Systems
