GME AE4705B Antenna: The Definitive Guide for NZ 4WD & Commercial Fleets

Most 4WD owners believe that higher gain always equals better range, but in New Zealand's vertical landscapes, the wrong dBi rating is often why your signal fails exactly when you need it most. Choosing the right hardware like the ae4705b antenna is about more than just buying a brand; it's about matching your equipment to the specific physics of the Southern Alps and our corrugated rural tracks.

You've likely experienced the frustration of a snapped whip on a washboard road or a signal that drops out the moment you enter a deep gully. It's a common pain point for commercial fleet managers and recreational drivers who rely on their UHF CB radios for safety in areas with zero cellular coverage. We understand that in the back country, communication isn't just a convenience, it's a critical safety tool.

This guide explains why the GME AE4705B is the industry standard for durability and performance under the General User Radio Licence (GURL) framework. You'll learn how to optimize this 1200mm, 6.6dBi antenna for your specific vehicle and why its modular design offers a "set and forget" solution for New Zealand's harshest environments.

What is the GME AE4705B Antenna? Technical Overview

The ae4705b antenna is the benchmark for UHF CB communication in New Zealand, specifically engineered for the heavy transport, forestry, and recreational 4WD sectors. It consists of a 1200mm heavy-duty radome assembly that provides a 6.6dBi gain, mounted on a robust spring base designed to absorb the high-frequency vibrations found on rural corrugated tracks. While many antennas fail when subjected to the mechanical stress of off-road environments, this model thrives because of its specific materials and construction.

This model has earned its "all-rounder" status because it balances physical height with electronic performance. By placing the radiating element 1.2 metres above the mounting point, it effectively clears most vehicle rooflines. This reduces signal shadowing and improves the overall range when communicating with other vehicles or base stations in remote areas.

To better understand the technical factors involved in selecting a UHF antenna, watch this helpful video:

The core of the system is a black fibreglass radome that protects the internal copper elements from environmental hazards like salt spray and physical impacts from low-hanging branches. Unlike thin wire whips that can whip around and cause erratic signal patterns, the rigid radome maintains a consistent vertical orientation. This stability is supported by the heavy-duty AS004B spring base, which protects both the antenna and the vehicle's bullbar from metal fatigue.

Key Specifications at a Glance

• 6.6dBi gain: This rating provides a compressed signal pattern that extends further toward the horizon than lower-gain options, without being so narrow that it fails in hilly terrain.
• Ground-independent design: The antenna doesn't require a large metal surface to act as a ground plane, making it ideal for mounting on bullbars, roof racks, or composite surfaces.
• 1200mm total length: This height is strategic, ensuring the signal isn't blocked by the vehicle's own bodywork when mounted on a front bumper.

The AE4700 Series Modular Advantage

One of the primary reasons we recommend this system is its modularity. The AE4705B belongs to the AW4700 series, which features an interchangeable whip system. If your operational needs change, you can unscrew the 6.6dBi whip and replace it with a shorter 2.1dBi whip for mountainous areas without replacing the entire base or cable assembly.

The system also utilizes a pre-terminated FME connector, which allows the coaxial cable to be routed through small firewall grommets and tight dashboard gaps without the need for specialized soldering tools. For businesses managing vehicle-mounted two-way radios across a fleet, this modularity simplifies both the initial installation and long-term maintenance.

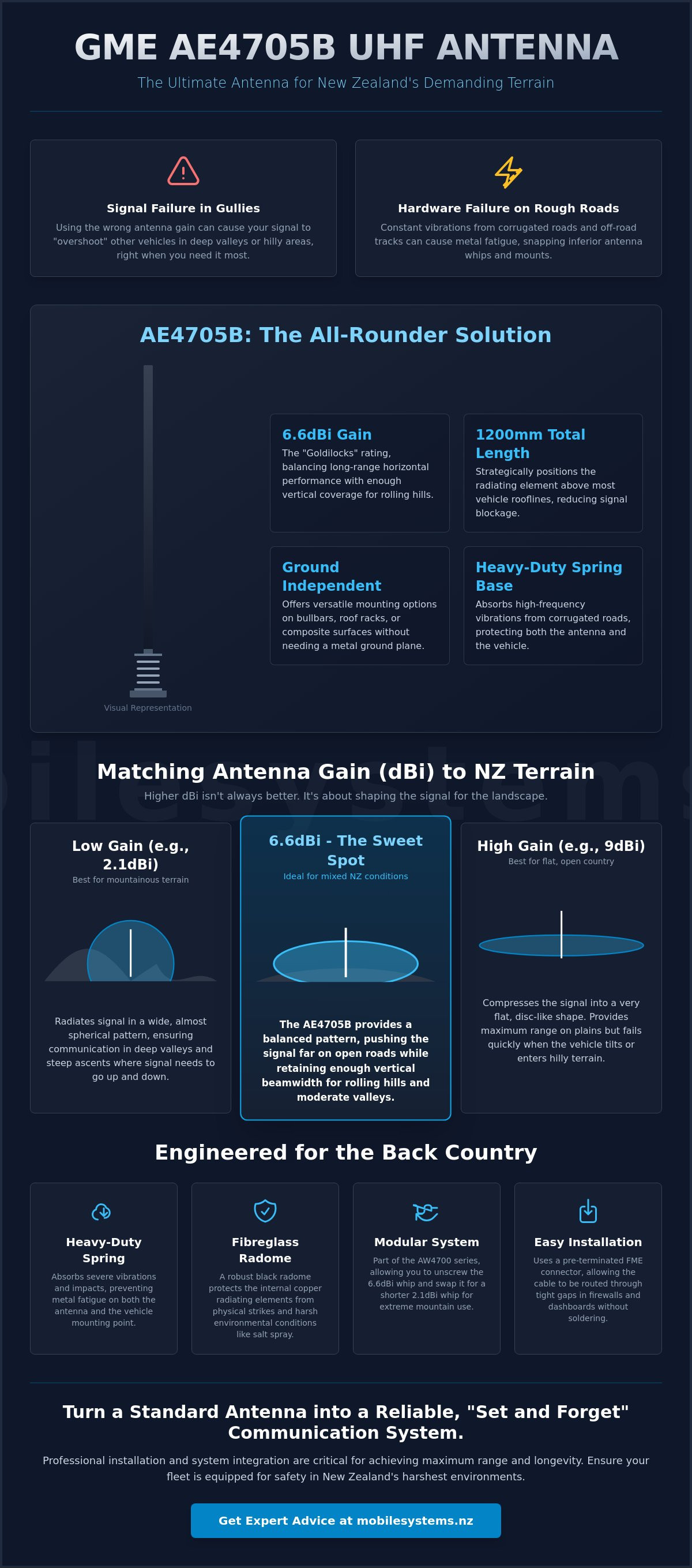

Matching 6.6dBi Gain to NZ Terrains

Antenna gain is often misunderstood as "output power," but it actually describes how a signal is shaped. A 0dBi antenna radiates signal in a perfect sphere. As dBi increases, that sphere is compressed into a flatter, disc-like shape. This compression forces the signal further toward the horizon, which is why the ae4705b antenna provides superior range on open roads compared to standard "stubby" antennas.

In New Zealand, we rarely deal with perfectly flat or consistently mountainous terrain. The 6.6dBi rating is the "Goldilocks" choice because it's versatile enough for 85% of our driving conditions. On the Waikato Expressway or the Canterbury Plains, the flattened signal pattern reaches much further, maintaining clear line-of-sight communication over several kilometres.

When to choose 6.6dBi over lower gain

The 6.6dBi gain is ideal for those who spend time on rolling hill country or open highways. It maximizes the legal 5-watt power limit by focusing the energy where it's most useful. Instead of wasting signal strength by sending it into the sky or the ground, it pushes the "pancake" of coverage out toward other vehicles. This focus is why the ae4705b antenna remains the preferred choice for South Island transport operators and rural contractors.

However, there's a trade-off known as signal overshoot. In the deep, steep-sided valleys of the Southern Alps, a high-gain signal might pass right over the top of a vehicle located on a high ridge. If your primary use is in extreme vertical landscapes, a lower gain whip might be more effective. For those needing portable alternatives for ground crews, exploring our range of handheld walkie-talkies can provide a useful backup for close-range communication.

Terrain Performance Comparison

Choosing the right gain depends on where you spend most of your time. Higher gain isn't always "better"; it's simply more focused. While the AE4705B is a fantastic all-rounder, specialized environments require different patterns to ensure you don't lose contact in critical moments.

If you're unsure which pattern fits your fleet's typical route, a tailored assessment often prevents costly mistakes in hardware selection. This ensures your team stays connected whether they're in the heart of the King Country or on a coastal highway.

Built for the Back Country: Durability and Engineering

New Zealand's rural road network presents a unique mechanical challenge for communication hardware. Between the high-frequency vibrations of corrugated gravel tracks and the salt-laden air of our coastal highways, standard antennas often fail within months. The ae4705b antenna is specifically engineered to survive these conditions, using a combination of high-grade stainless steel and heavy-duty polymers that resist both physical impact and environmental degradation.

Durability in the back country isn't just about strength; it's about flexibility. A rigid antenna mounted to a rigid bullbar will eventually snap at the base due to metal fatigue. The engineering behind this system focuses on dissipating energy before it reaches critical failure points. This approach ensures that your communication remains consistent even after hours of travel on washboard surfaces that would rattle lesser equipment apart.

Corrosion resistance is another critical factor for NZ fleets. The metallic components are finished to withstand the high UV index and the acidic environments found in forestry and agricultural applications. Additionally, the ground-independent design is a significant advantage for modern vehicles. Many newer utes use aluminium or composite panels that don't provide a traditional metal ground plane. Because the ae4705b antenna doesn't rely on the vehicle's bodywork to function, it maintains peak performance regardless of the mounting surface.

The AS004B Spring Base Explained

The AS004B heavy-duty spring is the foundation of the antenna's longevity. It isn't just a simple coil; it's a precision-engineered dampening system. Its primary role is to absorb the "whip" effect caused by sudden stops or rough terrain, protecting the mounting bracket from cracking.

• Impact Absorption: The spring allows for 360-degree flex, which is essential when navigating tight tracks with overhanging branches.
• Cable Protection: The coaxial cable is routed through the centre of the spring, shielding it from being pinched or stretched during extreme movement.
• Vertical Alignment: Despite its flexibility, the spring is stiff enough to keep the antenna vertical at highway speeds, ensuring your signal pattern stays directed toward the horizon.

Radome Technology: Beyond the Surface

The black radome isn't just for aesthetics. It's a thick fibreglass sleeve that protects the internal copper radiating elements from the elements. This radome is UV-stabilised to prevent the "yellowing" and brittleness that often affects cheaper plastics under the harsh New Zealand sun. Inside, the antenna maintains its electrical integrity through a series of vibration-resistant joints that won't shake loose over time.

If your operations also require mobile staff to step away from the vehicle, our Walkie Talkie NZ: Professional Buyer's Guide covers the best handheld companions for these vehicle-mounted systems. Combining a robust vehicle antenna with high-quality handhelds ensures your team stays connected, whether they're in the cab or on the ground.

Professional Installation and System Integration

The ae4705b antenna is a precision tool, but its performance is only as good as its installation. For New Zealand's commercial fleets and 4WD owners, the mounting location is the single most important factor in determining effective range. While bullbar mounting is the most common choice for off-roaders, guard or roof-rack mounts are often preferred for service vehicles to minimize signal shadowing from the vehicle's own cabin.

System integration is straightforward because this antenna is designed to work with all 477MHz UHF CB radios, including those from GME, Tait, and Icom. The package includes a pre-terminated 4.5m low-loss coaxial cable with a small-diameter FME connector. This allows you to route the cable through tight firewall grommets without drilling large holes or soldering new ends. Once routed, the included FME to PL259 adaptor ensures a secure connection to the back of your vehicle-mounted two-way radio.

Step-by-Step Installation Best Practices

• Secure Mounting: Attach the heavy-duty spring base to a stable bracket. Ensure the bracket is grounded to the vehicle chassis to prevent electrical noise, even though the antenna itself is ground-independent.
• Cable Routing: Run the 4.5m cable away from high-heat areas like the exhaust manifold and away from high-current wiring looms to avoid electromagnetic interference.
• SWR Testing: Always use an SWR (Standing Wave Ratio) meter after installation. A reading below 1.5:1 ensures your radio's power amplifier is protected and that your 5-watt signal is actually reaching the antenna.

Common Installation Mistakes to Avoid

One of the most frequent errors is kinking the coaxial cable during routing. A sharp 90-degree bend can crush the internal dielectric, causing signal reflections that significantly reduce your range. It's better to use gentle loops when managing excess cable length. Additionally, avoid mounting the antenna too close to vertical metal pillars or other antennas, such as cellular boosters, as this disrupts the 6.6dBi signal pattern.

A tailored assessment often prevents costly mistakes. If you're managing a large fleet or preparing a vehicle for remote solo travel, our team at Mobile Systems provides expert installation and servicing to ensure your hardware is optimized for the field. We've seen how poorly routed cables can fail after just 5,000 kilometres of vibration, and we know how to prevent it.

Why Source Your AE4705B from Mobile Systems NZ?

Sourcing an ae4705b antenna involves more than just a transaction. It requires a partner who understands the specific radio frequency challenges of the New Zealand back country. At Mobile Systems, we don't just sell hardware; we provide the technical infrastructure that keeps your team safe in areas where mobile coverage is non-existent. Our expertise ensures your equipment is selected and installed to meet the highest performance standards.

Our Mount Maunganui facility houses a comprehensive inventory of two-radio devices and accessories. This ensures that when you need a replacement whip or a full fleet upgrade, we have the stock and the technical staff ready to assist. We've spent years refining communication setups for emergency services and large-scale commercial fleets, ensuring every component meets the AS/NZS 4365 standard for UHF CB radio service.

The Value of Local Expertise

We focus on the 'why' behind the hardware. If your forestry crew is working in a deep basin, we won't just sell you a standard high-gain antenna; we'll explain how a mixed-gain approach might be better for your specific topography. Our solutions are customized to the operational realities of New Zealand industries, from high-country farming to civil construction.

• Qualified Installers: Direct access to NZ-based technicians who understand local vehicle types and mounting requirements.
• Nationwide Shipping: Fast dispatch from our Bay of Plenty hub to ensure minimal downtime for your fleet.
• Ongoing Support: After-sales service that includes system troubleshooting and on-site maintenance to keep your team connected.

Ready to Upgrade Your Communications?

Upgrading a single vehicle is simple, but managing a fleet-wide rollout requires coordination and technical foresight. We provide tailored quotes that account for specific mounting hardware, cable management, and radio integration. If you're in the area, visit our Mount Maunganui showroom to see the ae4705b antenna and other GME hardware in person before making a decision.

A tailored assessment often prevents costly mistakes in hardware selection. Contact our expert team today to discuss your communication requirements. We'll help you secure a reliable, "set and forget" solution that ensures your team remains within reach, no matter how remote the job site.

Optimising Your Fleet for the New Zealand Back Country

Choosing the right hardware is the first step toward reliable off-grid communication. The ae4705b antenna provides the specific balance of durability and gain required for New Zealand's unique topography. By understanding the science of 6.6dBi gain and the importance of a modular, ground-independent design, you can ensure your team remains connected in the most remote locations.

Mobile Systems Limited has been a specialist NZ installer since 2000. As an authorized GME and Tait dealer, we don't just supply parts; we provide comprehensive system integration. Our fleet of mobile support vehicles offers on-site assistance across the region, ensuring your equipment is correctly calibrated and maintained for long-term service. This level of hands-on expertise is essential for maintaining safety standards in high-stakes industries like forestry and transport.

A tailored assessment often prevents costly mistakes in hardware selection and installation. You can request a professional assessment for your vehicle or fleet to ensure your communication setup is fit for purpose. We look forward to helping you build a more resilient and reliable mobile network.

Frequently Asked Questions

Is the AE4705B compatible with all UHF CB radios?

Yes, the ae4705b antenna is compatible with all 477MHz UHF CB radios that comply with AS/NZS 4365 standards. This includes all modern vehicle-mounted units from GME, Tait, and Icom. It uses a standard PL259 connection via the included adaptor, ensuring it integrates seamlessly with your existing hardware.

Can I swap the 6.6dBi whip for a shorter one for city driving?

You can easily swap the whip thanks to the modular AW4700 series design. If you're moving from open highways to mountainous terrain or tight city streets with low-clearance car parks, you can unscrew the 1200mm whip and replace it with a shorter 2.1dBi version. This flexibility allows you to change your signal pattern without re-routing cables or replacing the spring base.

Do I need to ground the antenna if my vehicle is made of aluminium or carbon fibre?

You don't need a metal ground plane for this specific model because it's a ground-independent design. This makes it the ideal solution for modern vehicles with aluminium bonnets or composite components. It will maintain peak performance whether it's mounted on a plastic guard, a roof rack, or a metal bullbar.

What is the difference between the AE4705B and the AE4705 (White) version?

The only difference between these two models is the colour of the fibreglass radome. The "B" in AE4705B signifies a black finish, which is often preferred for its aesthetic on modern 4WDs and commercial fleets. Both antennas share the same 1200mm length and 6.6dBi gain specifications, delivering identical electronic performance.

Can the AE4705B be used for VHF marine frequencies?

No, this antenna is strictly tuned for 477MHz UHF CB frequencies and won't work for VHF marine radios. Marine frequencies operate in the 156 to 162MHz range, which requires a completely different antenna length and internal tuning. Attempting to use the ae4705b antenna for marine communication will likely damage your radio's internal power amplifier.

What happens if my antenna hits a low-hanging branch?

The AS004B heavy-duty spring is designed to absorb significant impacts from low-hanging branches or scrub. It provides 360-degree flex, which usually prevents the base from snapping or damaging your vehicle's mounting bracket. While the fibreglass radome is extremely tough, it can still crack under extreme force, but the spring prevents most catastrophic failures.

How much range can I expect from the AE4705B in the NZ bush?

Range in the New Zealand bush typically falls between 2km and 8km depending on the density of the canopy and the surrounding terrain. While the 6.6dBi gain is excellent for ridges and open areas, the signal can be obstructed by heavy, damp foliage in deep valleys. For consistent communication in extreme vertical terrain, a lower gain whip may provide a more reliable vertical signal spread.

Is the cable included with the AE4705B long enough for a standard ute?

The 4.5 metres of low-loss coaxial cable included is sufficient for almost all standard New Zealand utes. This length typically allows for routing from a front bullbar, through the firewall, and into the centre console of a Toyota Hilux or Ford Ranger. If you have a long-wheelbase truck or an oversized commercial vehicle, you may require a cable extension to reach the dashboard.
