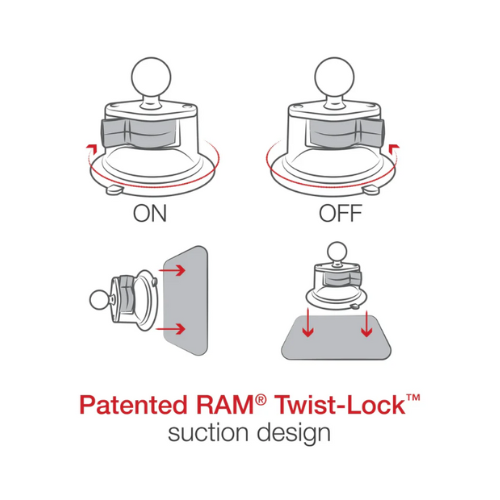

Collection of ram suction cup twist lock mechanism diagram in a gallery layout

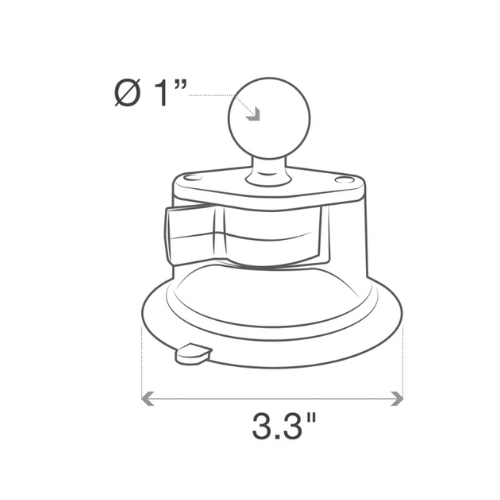

Collection of ram suction cup dimensions diagram in a gallery layout

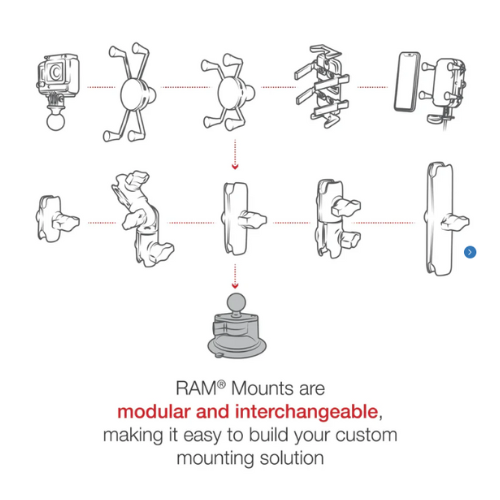

Collection of ram suction cup mount diagram of available fittings diagram in a gallery layout

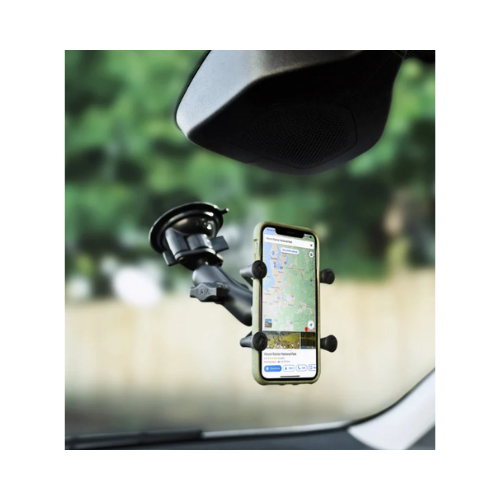

Collection of ram suction cup mount used on a vehicle windscreen in a gallery layout

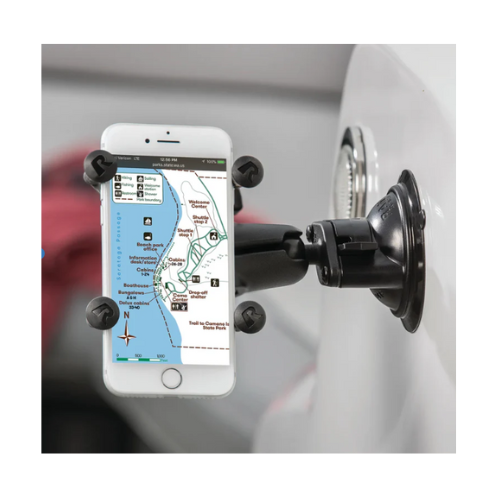

Collection of ram suction cup mount used on a vertical marine boat surface in a gallery layout

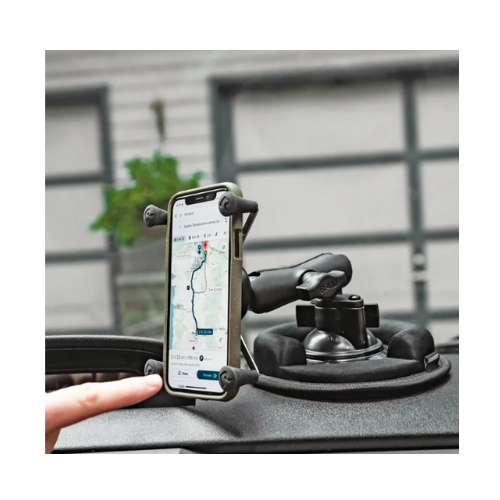

Collection of ram suction cup used on a vehicle dash in a gallery layout
  • Collection of ram suction cup 1" mount rasm-b-224-1u in a gallery layout
  • Collection of ram suction cup 1" pictured with an arm in a gallery layout
  • Collection of ram suction cup twist lock mechanism diagram in a gallery layout
  • Collection of ram suction cup dimensions diagram in a gallery layout
  • Collection of ram suction cup mount diagram of available fittings diagram in a gallery layout
  • Collection of ram suction cup mount used on a vehicle windscreen in a gallery layout
  • Collection of ram suction cup mount used on a vertical marine boat surface in a gallery layout
  • Collection of ram suction cup used on a vehicle dash in a gallery layout

RAM Suction Cup Base with 1" Ball (RAM-B-224-1U)

$53.40

GST Inclusive. Discounts and Shipping calculated at checkout.

Quantity

Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.

In stock, ready to be shipped

RAM-B-224-1U Suction Cup Base, B-Size 1" Ball Mount

A robust twist-lock suction cup mount for smooth surfaces.

Overview

The RAM-B-224-1U is a robust twist-lock suction cup mount featuring a 3.25" (approx. 3.3") diameter rubber base, built for strong adhesion on smooth non-porous surfaces like glass or plastic. It connects to a compact diamond adapter plate holding a 1" B-size rubber ball, perfectly compatible with standard RAM double-socket arms.

Key Features

  • Twist-lock suction cup means secure mounting on vehicle windshields or smooth surfaces.
  • 3.3" diameter rubber suction base means reliable grip.
  • Diamond base plate with 1" B-size rubber ball means alignment with the RAM-B-238U style.
  • High-strength composite and marine-grade aluminium means genuine durability and corrosion resistance.
  • Lifetime warranty (rubber suction cup wear items may be excluded) means genuine peace of mind.

Ideal Uses

  • Mounting devices such as smartphones, GPS units, PoC radios, or lightweight tablets
  • Mounting on vehicle windshields, dashboards, boats, any smooth, non-porous surface
  • Popular in fleet vehicles, mobile operations, emergency services, agriculture, and marine environments

Compatibility

  • Attaches to RAM B-size double-socket arms (e.g. RAM-B-201U series)
  • Compatible with holders and cradles for GPS, phone, tablet, PoC, or tracking devices

Key Specifications

Ball Size B-size (1" diameter)
Suction Cup Diameter Approx. 3.25-3.3"
Weight Capacity Approx. 2lb standard use, 1lb heavy-duty applications

FAQs

What surfaces does this work on?
It's designed for smooth, non-porous surfaces like glass or plastic, such as windshields, dashboards, and boats.

Overview

A twist-lock suction cup mount with 1 inch B-size ball for smooth surfaces like windshields and dashboards.

Features

Twist-lock suction cup
3.3 inch diameter rubber base
Lifetime warranty
