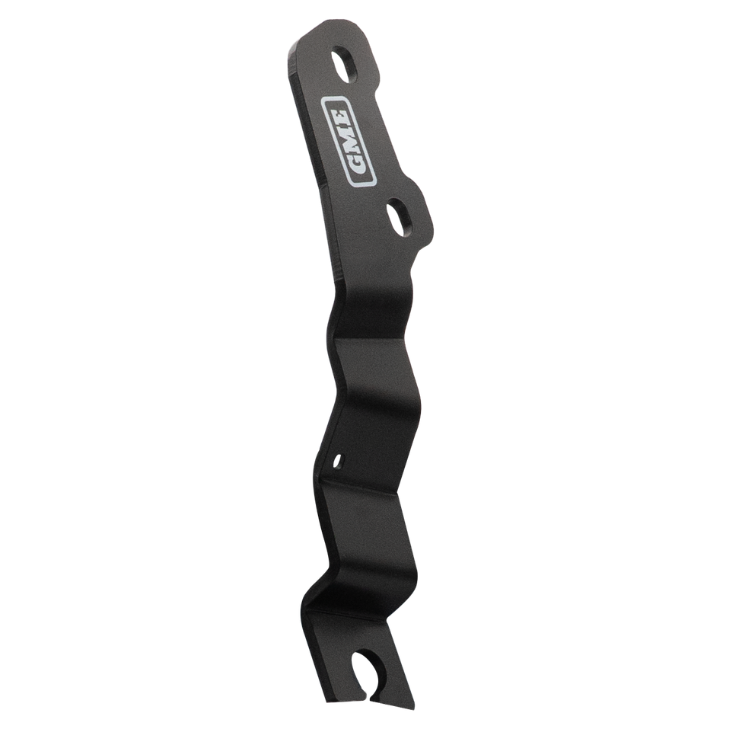

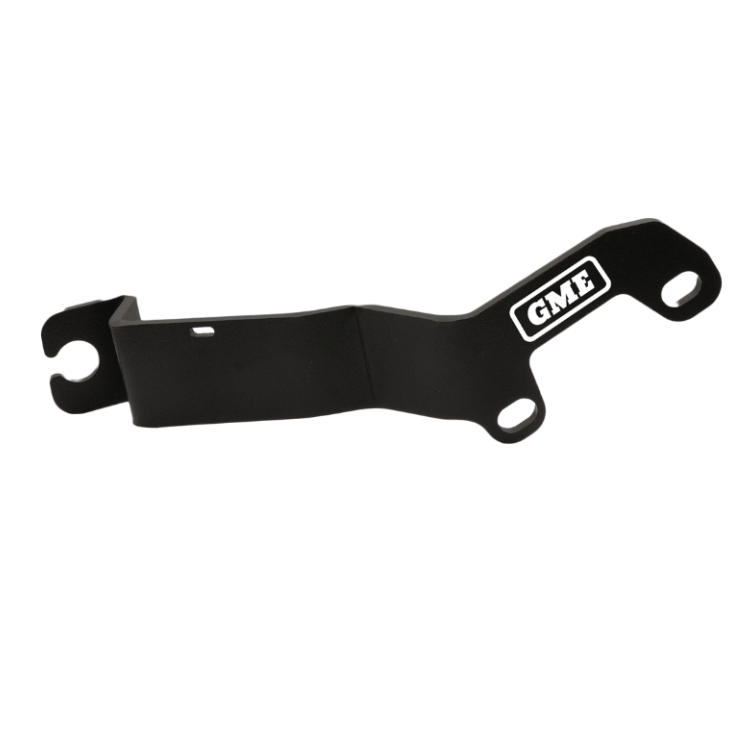

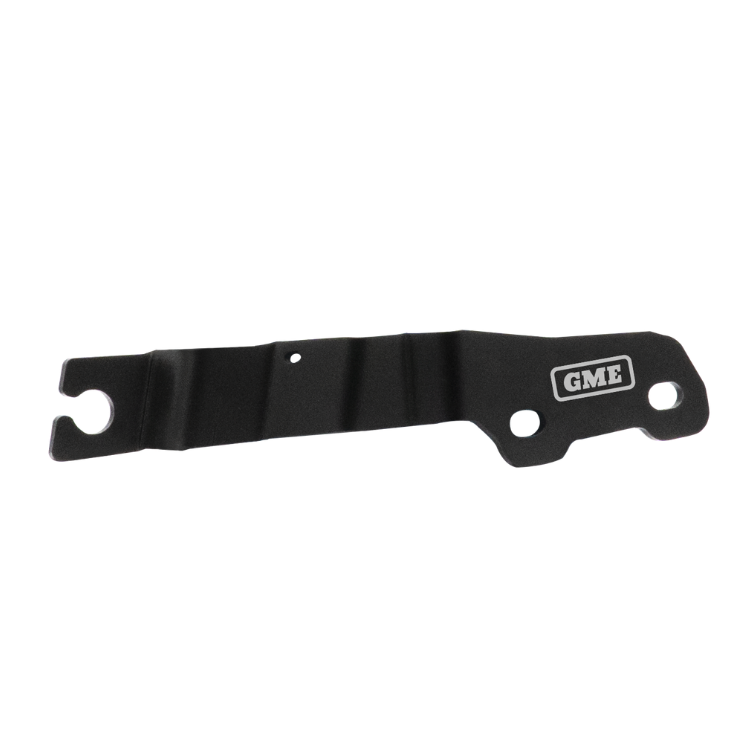

GME BHM05 Bonnet Hinge Mount - Type 5
Discounts and Shipping calculated at checkout.
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
Bonnet Hinge Mount for Toyota LandCruiser 300 (2021 to Current)
Fitment note: this bracket is built specifically for the Toyota LandCruiser 300 Series (2021 onwards). It is not a universal fit, if your vehicle is a different model, check the compatibility table below for the right bracket.
Overview
The GME BHM05 Bonnet Hinge Mount is a heavy duty antenna bracket engineered specifically for the Toyota LandCruiser 300 Series. It bolts straight onto your bonnet's existing passenger side hinge hardware, so there is no drilling and no lasting change to your vehicle. Built for LandCruiser 300 owners who do not have a bull bar or other mounting point but still want a clean, professional antenna install.
Vehicle Compatibility
GME builds a different bonnet hinge mount for each vehicle, so the right bracket comes down to your make, model and year. Find your vehicle below.
| Mount | Make | Vehicle models |
|---|---|---|
| BHM01 | Ford | Ranger and Ranger Super Duty RA (2022 to current) Ranger Raptor RA (2022 to current) Everest UB (2022 to current) |
| BHM02 | Isuzu / Mazda | Isuzu D-MAX RG (2020 to current) Isuzu MU-X RJ (2021 to current) Mazda BT-50 XT / XS (2020 to current) |
| BHM03 | Toyota | Hilux AN110, AN120, AN130 (2015 to 2025) Fortuner AN150, AN160 (2015 to current) |
| BHM04 | Mitsubishi / Nissan | Mitsubishi Triton MV (2024 to current) Nissan Navara D27 (2026 to current) |
| BHM05 (this bracket) | Toyota | LandCruiser 300 (2021 to current) |
| BHM06 | Toyota | Hilux N90 (2026 to current) |
Â
Not sure which series your vehicle is? Talk to our team before you order and we'll confirm the right bracket.
Key features
- Vehicle specific LandCruiser 300 fitment means a proper factory matched fit rather than a generic universal bracket, for any 300 Series owner after a clean installation.
- 5mm mild steel construction means a bracket tough enough for corrugations, bulldust, and vibration, for Bay of Plenty four wheel drivers heading rural or off road.
- Mounts to your existing hinge hardware means no drilling into the bonnet, for owners who want to protect resale value and factory warranty.
- Integrated coax cable slot means a tidy antenna lead with easy removal, for anyone who needs to pull the antenna before a car wash or a low garage door.
- Maintains full bonnet and wiper function means no day to day compromises, for tradies and farmers using the vehicle every day.
- No bull bar required means a genuine mounting option for LandCruiser 300 owners who have not fitted one, for those wanting comms capability without extra vehicle modification.
- Made in Australia means proven local manufacturing quality, for buyers who want confidence in long term durability.
Applications
- 4WD touring and remote travel
- Farming and rural station work
- Tradies and fleet vehicles needing UHF comms
- Recovery and emergency response vehicles based on the LandCruiser 300
What's in the box
- GME BHM05 Bonnet Hinge Mount, bracket only
- Uses your vehicle's existing hinge bolts, no extra mounting hardware included or needed
Antenna, coax cable, and radio are sold separately.
Complete your setup
GME lists its AE4700 series radome antennas as compatible with the BHM range. We stock:
- GME AE4704 580mm Heavy Duty Radome Antenna (2.1dBi Gain)
- GME AE4701 580mm Radome Antenna (2.1dBi Gain)
- GME AE4702 1060mm Radome Antenna (6.6dBi Gain)
- GME AE4703 1100mm Radome Antenna (6.6dBi Gain)
Not sure between the short 2.1dBi and the longer 6.6dBi antennas? Talk to our team and we'll match the antenna to your coverage needs.
Key specifications
| Spec | Detail |
|---|---|
| Model | BHM05 |
| Vehicle fitment | Toyota LandCruiser 300 Series, 2021 to current |
| Material | 5mm mild steel |
| Mounting method | Passenger side bonnet hinge, uses existing vehicle hardware, no drilling |
| Cable management | Integrated coax slot for easy antenna removal |
| Origin | Made in Australia |
| Warranty | 1 year |
| Dimensions (approx, unconfirmed by GME) | 96 x 310 x 80mm, W x H x D |
| Weight (approx, unconfirmed by GME) | 550g |
Dimensions and weight above are sourced from a third party retailer listing, not GME's own spec sheet, treat as approximate until confirmed.
FAQs
Will fitting the BHM05 require drilling into my LandCruiser's bonnet?
No, the BHM05 bolts straight onto your LandCruiser 300's existing bonnet hinge hardware, so there is no drilling and no lasting modification to your vehicle.
Does this bracket fit any other LandCruiser or 4WD model?
No, the BHM05 is built specifically for the Toyota LandCruiser 300 Series, 2021 onwards, only. If you need a bonnet hinge mount for a different vehicle, check the compatibility table above, GME builds a specific bracket for each model.
What antenna works with the BHM05?
GME lists its AE4701, AE4702, AE4703 and AE4704 radome antennas as compatible with the BHM range, and we stock all four.
Do I need a licence to run a UHF radio through this mount?
The mount itself needs no licence, it is simply a bracket. Licensing depends on the radio and antenna you run, so check with us or the relevant NZ regulator for your specific setup.
Is the BHM05 tough enough for corrugated roads and off road use?
Yes, it is built from 5mm mild steel and made in Australia specifically to handle the vibration and knocks of 4WD touring and rural work.
