Hytera- ACM-01-PTT & MIC Waterproof Cable – Durable Audio Accessory

$72.86
Tax included. Shipping calculated at checkout.

GST Inclusive. Discounts and Shipping calculated at checkout.

Quantity

Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.

In stock, ready to be shipped

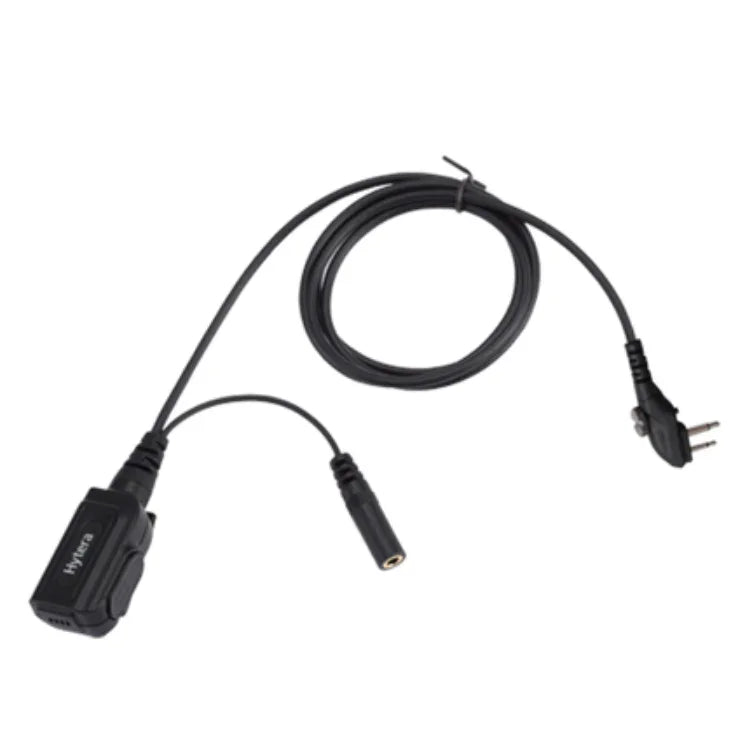

Hytera ACM-01 PTT & MIC Waterproof Cable – Durable Audio Accessory for Hytera Radios

The Hytera ACM-01 is a compact and rugged push-to-talk (PTT) and microphone cable designed to support clear communication in active environments. IP54-rated for water and dust resistance, it features a 3.5mm audio jack for connection with receive-only earpieces, making it ideal for security, hospitality, industrial, and event use. The ACM-01 offers both flexibility and reliability where clear voice transmission and fast access to PTT is essential.



Key Features

  • Built-in PTT button and inline microphone

  • IP54-rated for dust and water resistance

  • 3.5mm audio jack for earpiece compatibility

  • Durable design with over 100,000 PTT cycles

  • Lightweight, low-profile, and comfortable to wear

  • Compatible with a wide range of Hytera handheld radios



Compatible Hytera Radios

  • DMR Models: BD505LF, BD505, BD555, BD615, PD405, PD415, PD485, PD505LF, PD505, PD565

  • Analogue Models: TC-446S, POWER446, TC-508, TC-510, TC-518, TC-580, TC-610, TC-620, TC-700

Please check compatibility with your specific radio model before ordering.

Features

Comprehensive Specifications
• Weight: Approx. 35 g
• Colour: Black
• PTT Key: Yes
• VOX: Not supported
• Emergency Key: No
• Microphone Sensitivity: –45 ±3 dB @ 1 kHz, 3.0 V, 2.2 KΩ
• Microphone Impedance: ≤ 2.2 kΩ @ 1 kHz
• Operating Voltage: 1–10 V DC
• Ingress Protection: IP54
• Operating Temperature: –20°C to 60°C
• Storage Temperature: –40°C to 75°C
• Earpiece Connector: 3.5 mm jack
• Radio Connector: Dual pin plug
