Hytera HR-652 Compact DMR Repeater

Hytera HR652 Compact Repeater

Ultra-Compact | 25W Output | Optional Battery | IP Connect

Hytera HR652 Product Overview

The Hytera HR652 is a next-generation compact DMR repeater designed to deliver reliable, seamless voice and data communications in demanding environments. With 25W output power, dual-slot TDMA digital capability, and optional battery backup, the HR652 expands coverage while remaining highly portable and flexible.

Ideal for commercial, industrial, marine, emergency, and temporary deployment applications across New Zealand.

Why Choose the Hytera HR652?

Ultra-Compact & Lightweight

• Weighs just 2.0 kg (without battery)

• Measures only 201 × 211 × 80 mm

• Suitable for wall mounting, flat surface installation, or portable deployment

Perfect for sites with limited space or temporary coverage requirements.

Dual Mode: Analogue & DMR Digital

• Operates in analogue, DMR Tier II digital, or dynamic mixed mode

• Automatically switches between analogue and digital calls

• Smooth migration path from analogue to digital systems

Protects your investment while future-proofing your network.

25W Adjustable Output Power

• High power: 5–25W adjustable

• Low power: 1–5W adjustable

• 100% duty cycle

Optimise output for localised coverage or extended campus-wide range.

Industry-Leading Receiver Sensitivity

• Digital sensitivity: 0.2 μV (5% BER)

• Analogue sensitivity: 0.16 μV (12dB SINAD)

Delivers strong, stable communications even at the edge of coverage.

Built for Harsh Environments

• IP54 rated for dust and water protection

• MIL-STD-810H compliant for shock, vibration and humidity

• Operating temperature: –30°C to +60°C

Engineered for industrial, marine, and outdoor installations.

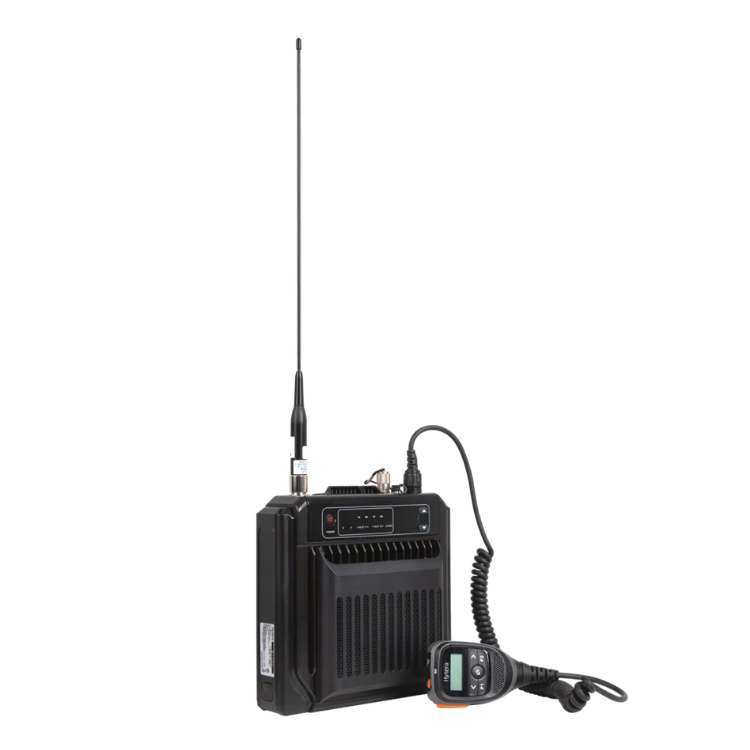

Optional Battery Power & Portability

The HR652 supports an optional 12.5Ah lithium battery, providing:

• Up to 4 hours at 25W (50:50 duty cycle)

• Up to 9 hours at 10W

• Fast charging in approximately 3.5 hours (with 100W fast charger)

This enables:

• Mobile search and rescue deployment

• Temporary site coverage

• Vehicle-mounted operation

• Emergency backup during power outages

The unit can be transported in a backpack configuration for rapid field deployment.

IP Connect – Multi-Site Linking (Licence Required)

The HR652 supports IP Connect, allowing:

• Linking multiple repeaters via LAN/WAN, VPN or microwave

• Multi-site network expansion

• Cross-band linking (UHF/VHF)

• Campus-wide or regional coverage

A cost-effective way to scale your radio network across multiple locations.

Flexible System Integration

The HR652 integrates with:

• DMR Tier II conventional systems

• IP Connect networks

• Dispatch systems

• SIP and VoIP phone systems

Designed as a flexible communications platform for modern radio networks.

Technical Overview

General Specifications

• Frequency range: UHF 400–470 MHz

• Channel capacity: 1,024 channels

• Channel spacing: 12.5 / 20 / 25 kHz

• Frequency stability: ±0.5 ppm

• Antenna impedance: 50Ω

• Duty cycle: 100%

Power & Consumption

• DC input: 14.4V ±15%

• Battery voltage: 12–16.8VDC

• DC standby ≤0.35A

• Transmit at 25W ≤6A

Typical Applications

• Warehousing & logistics facilities

• Construction sites

• Large campuses & high-rise buildings

• Ports & marine operations

• Emergency services

• Temporary event coverage

• Remote industrial sites

Why Buy the Hytera HR652 from Mobile Systems Limited?

Mobile Systems Limited provides complete repeater solutions, including:

• Coverage planning & system design

• Licensing assistance (RSM compliant)

• Antenna & duplexer configuration

• Installation & commissioning

• Network linking setup

• Ongoing servicing & support

We ensure your repeater system is correctly engineered for NZ conditions and regulatory compliance.
