RAM® Universal Double Ball Mount with Two Round Plates - B Size Medium (RAM-B-101U)
GST Inclusive. Discounts and Shipping calculated at checkout.
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
RAM-B-101U Double Socket Arm Mount – Dual 2.5” Round AMPS Bases
The RAM-B-101U is a versatile and rugged mounting base system featuring two 2.5" round AMPS hole pattern bases connected by a medium-length double socket arm. Designed with RAM’s patented 1" rubber ball and socket system, this mount offers outstanding vibration resistance, shock absorption, and nearly unlimited adjustability—making it ideal for securely mounting devices in vehicles, heavy machinery, marine equipment, and field service setups.
This configuration is commonly used to support tablets, GPS units, radio brackets, or custom panels where a firm but flexible mounting platform is required.
✅ Key Features
-
Dual 2.5” Round AMPS Bases – Universal mounting pattern compatible with a wide range of device brackets and cradles
-
Medium-Length Double Socket Arm – Allows for flexible positioning and quick adjustments
-
1” Ball-and-Socket System – Dampens shock and vibration in high-motion environments
-
Marine-Grade and Industrial-Ready – Made from powder-coated aluminum and high-strength composite
-
Compact Yet Strong – Low-profile design fits easily into tight spaces while supporting heavier gear
-
Ideal for Dash, Console, or Flat Panel Mounting – Perfect for UTVs, trucks, forklifts, boats, and service vehicles
Built for Rugged NZ Applications
From civil contractors and transport operators to forestry machinery and marine vessels, the RAM-B-101U offers unmatched stability and durability for mounting mission-critical gear in demanding conditions.
Applications
-
Mounting screens, radios, and tablets in vehicles or boats
-
Dash or console installations for GPS or monitoring systems
-
Fixed mounts for control panels or ruggedised laptops
-
UTV and agricultural cab applications
-
Fleet setups and mobile service units

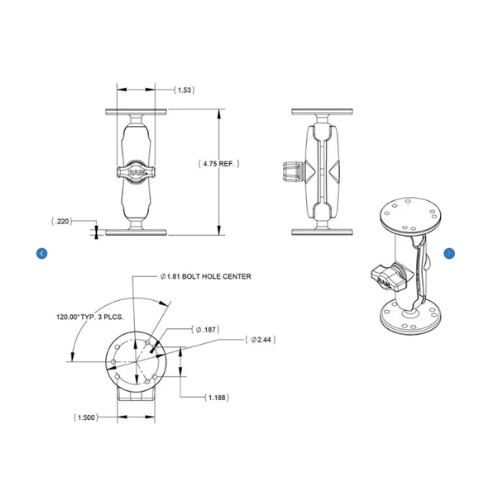

Specifications
-
Ball Size: RAM “B” Size – 1” diameter
-
Arm Length: Medium – 3.69” (9.38 cm)
-
Base Diameter: 2.5” (6.35 cm)
-
Hole Pattern: Universal AMPS (4-hole, 1.181" x 1.496" center)
-
Material: Marine-grade aluminum
-
Weight Capacity: Standard use for devices up to approx. 1.8 kg
