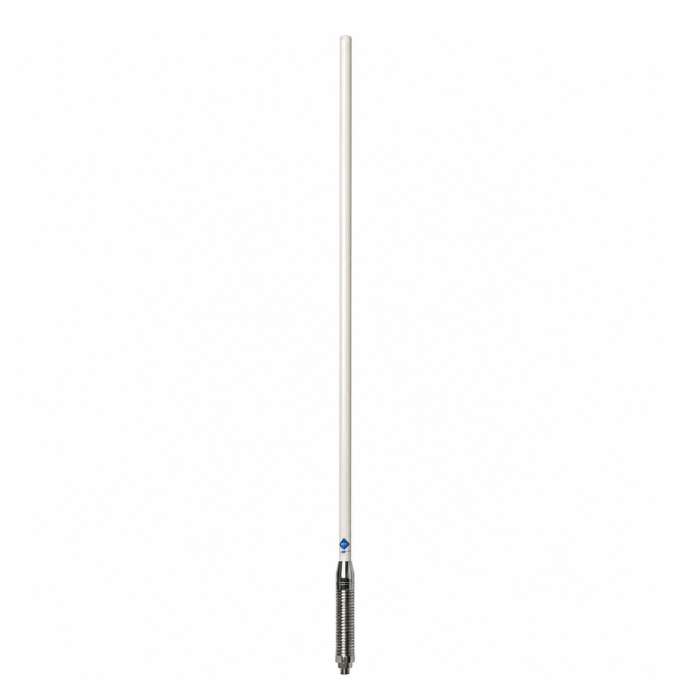

RFI 5G LTE Cellular Mobile Antenna 698-3800MHz 7.5dBi (White) 5M SMA Plug CD8197-W
$341.55
GST Inclusive. Discounts and Shipping calculated at checkout.
Quantity
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
In stock, ready to be shipped
Cellular Vehicle Antenna, 7.5dBi, 698–3800MHz
The RFI CD8197-W is a premium high-gain vehicle antenna for 4G LTE and 5G cellular connectivity, finished in white for a clean OEM look.
Overview
The RFI CD8197-W is a wideband cellular antenna covering 698–3800MHz, the full range used by 4G LTE and 5G networks in New Zealand. With 7.5dBi gain, the highest in the RFI cellular antenna range MSL stocks, it's built for permanent mounting on commercial, emergency service, and fleet vehicles that need maximum reach in fringe coverage areas.
It ships with a 5-metre low-loss coaxial cable terminated in an SMA male connector, and mounts through a single 13–16mm hole, no separate mounting base required.
The white fibreglass housing gives a clean, low-profile appearance for fleets that want factory-look antennas without sacrificing performance.
Key Features
- Full 698–3800MHz coverage with no tuning required means one antenna handles 4G LTE and 5G NR straight out of the box, for fleets that don't want to manage multiple antennas per network generation.
- 7.5dBi gain, omni-directional means the strongest signal reach in MSL's RFI cellular range, for vehicles regularly working in fringe or rural coverage areas.
- White, low-profile fibreglass housing means a clean OEM appearance for fleets that want factory-look antennas on branded or client-facing vehicles.
- 5-metre low-loss cable with SMA male connector means a straightforward run from roof or bonnet to router or modem without extra adapters, for installers wiring up vehicle routers and gateways.
- UV-stabilised fibreglass radome means the antenna keeps performing after years in the sun and rain, for vehicles that live outdoors.
- Single 13–16mm hole mount means a quick, clean install with no separate mounting base to source or fit, for technicians on a tight installation schedule.
Applications
- Emergency service and government fleets
- Transport and logistics
- Mining and forestry vehicles
- Agricultural machinery
- Utility and civil construction fleets
- Mobile Wi-Fi routers, telematics, and IoT gateways
What's in the Box
- 1 x RFI CD8197-W antenna, white fibreglass housing
- 5m low-loss coaxial cable, fitted with SMA male connector
Key Specifications
| Brand | RFI |
| Frequency range | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Gain | 7.5dBi |
| VSWR | <2.5:1 |
| Power handling | 10W |
| Polarisation | Vertical, omni-directional |
| Cable and connector | 5m RG58 (9006) low-loss cable, SMA male |
| Mounting | 13-16mm diameter hole, spring base |
| Length | 1150mm |
| Colour | White |
Download the RFI CD8100 Series cellular antenna datasheet (PDF)
Video
No product video currently available for this model. Suggested brief if one's produced: antenna being hole-mounted on a vehicle roof, cable routing to a router.
Why Buy From Mobile Systems Limited?
Mobile Systems Limited supplies professional cellular connectivity solutions throughout New Zealand from our base in Mt Maunganui, Bay of Plenty. Our team provides:
- 5G and LTE antenna selection
- Vehicle router installation
- Fleet connectivity solutions
- Cellular coverage advice
- Professional installation and ongoing support
Whether you're connecting a single service vehicle or deploying a nationwide fleet, we'll help you choose the right antenna for reliable mobile communications.
Frequently Asked Questions
What frequency range does the CD8197-W support?
The antenna operates across 698–3800MHz, supporting a wide range of 4G LTE and 5G cellular frequencies.
Is this antenna compatible with 5G?
Yes. The CD8197-W is designed to support modern 5G NR networks as well as 4G LTE and earlier cellular technologies.
What devices can this antenna be connected to?
The antenna is suitable for cellular routers, industrial modems, vehicle Wi-Fi systems, IoT gateways, telematics devices, and remote monitoring equipment with an SMA connection.
Does the antenna include a cable?
Yes. It's supplied with a 5-metre low-loss coaxial cable terminated with an SMA male connector.
Is this antenna suitable for fleet vehicles?
Yes. It's designed for commercial fleet, emergency services, transport, mining, utility, and industrial vehicle applications.
Can Mobile Systems Limited install this antenna?
Yes. We supply and install professional 5G and LTE antenna systems, vehicle routers, cellular boosters, and complete mobile connectivity solutions throughout New Zealand.
