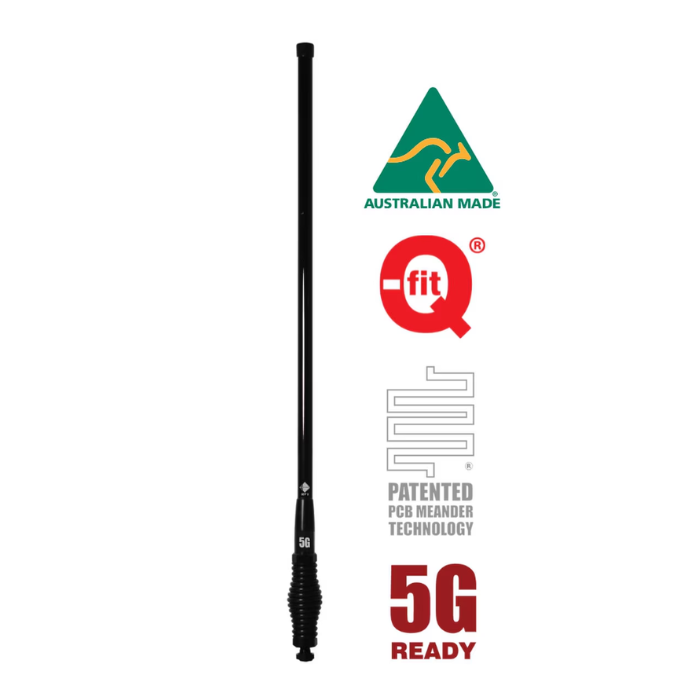

RFI CDR8195-B Q-Fit 5G LTE Collinear Antenna, 698-3800 MHz
Multi-band cellular antenna with Q-Fit removable whip for easy removal in low-clearance areas.
Overview
The CDR8195-B is part of RFI's CDR8100 Series, covering the 4G LTE bands (698-960MHz, 1710-2170MHz, 2300-2700MHz) plus the 5G LTE band (3400-3800MHz) in a single antenna. It's ideal for use with cellular modems and active repeaters, especially where signal is poor.
The outstanding performance of the CDR8100 series comes from RFI's patented Meander radiating elements. These Meander circuits are coupled together to deliver consistent gain, coverage pattern, and bandwidth, allowing the antenna to operate across all mobile phone networks globally in one unit.

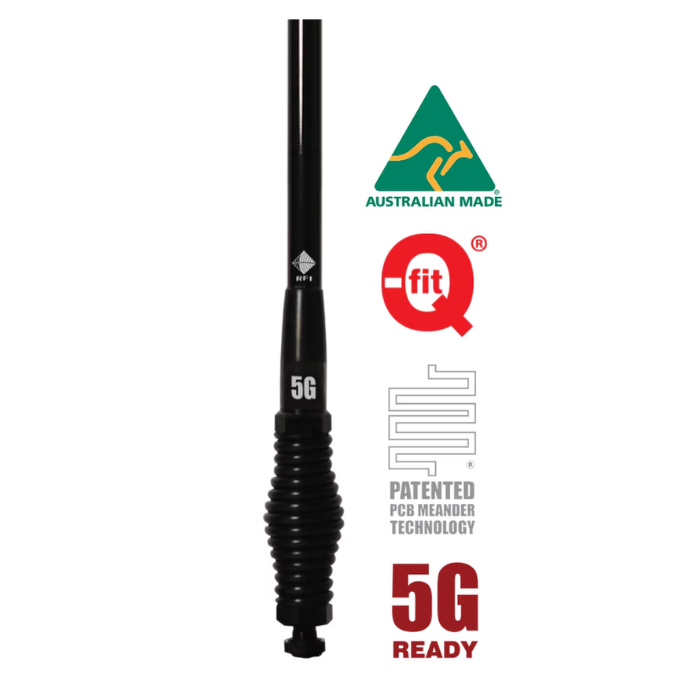

The CDR8100 series sits between RFI's lighter-duty CD8100 series and heavy-duty CDQ8100 series, and includes an integrated spring with threaded stud/nut for easy vehicle installation. The whip can be removed via the integrated N male connector in the whip and N female connector on the spring assembly. This model steps up to a longer whip and higher gain than the CDR8194-B.
Key Features
- Patented Meander PCB collinear design means the ultimate in pattern and gain stability.
- True multi-band coverage means readiness for current 4G/5G LTE networks in a single antenna.
- Higher gain across the low band and 5G band means suitability for fringe and rural applications requiring extra reach.
- Q-Fit removable whip system means easy removal for low-clearance areas like multi-storey car parks, car washes, or for antenna security.
Applications
- Cellular modems and active repeaters, especially in low-signal areas
- Fringe and rural 4G/5G coverage applications
- Bull bar mounted vehicle installations requiring a removable whip
- Fleet vehicles needing to pass through low-clearance areas
Key Specifications
| Product Code | CDR8195-B |
| Frequency Range | 698-960MHz / 1710-2170MHz / 2300-2700MHz / 3400-3800MHz |
| Gain | 6.5dBi (698-960MHz) / 4.5dBi (1710-2170MHz) / 5.5dBi (2300-2700MHz) / 6.5dBi (3400-3800MHz) |
| Tuned Bandwidth | Full band |
| VSWR | <2.5:1 |
| Nominal Impedance | 50Ξ© |
| Horizontal Beamwidth | Omni-directional |
| Polarisation | Vertical |
| Input Power | 10W |
| Cable & Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Whip Material | Fibreglass, black |
| Length | 940mm |
| Mounting Area | 13-16mm diameter hole (stud mount) |
FAQs
How does this differ from the CDR8194-B?
The CDR8195-B uses a longer 940mm whip and delivers higher gain on the low band (6.5dBi vs 5.5dBi), while sharing the same 4.5-5.5dBi gain on the mid bands and 6.5dBi on the 5G band.
Can the whip be removed?
Yes, the CDR8100 series uses a Q-Fit removable whip system, connecting via an integrated N male connector in the whip and N female connector on the spring assembly, allowing quick removal for low-clearance areas or security.
