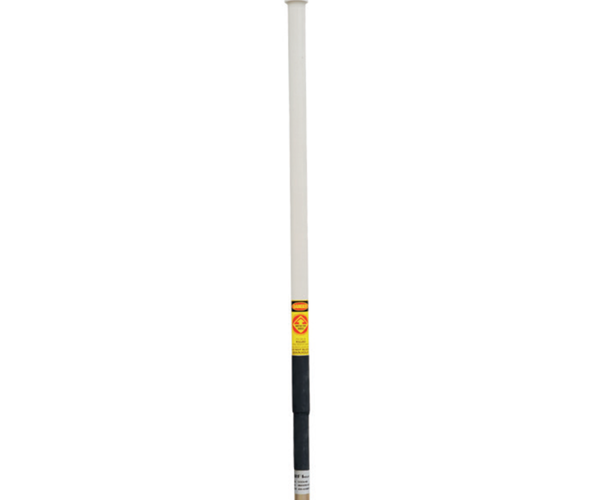

RFI COD4-4552 Broadband Dipole Antenna, 450-520 MHz UHF
Unity gain, full-band coverage with no tuning required.
Overview
The COD4-4552 is a broadband UHF vertical enclosed dipole engineered to cover the entire 450-520MHz band without tuning. A unique circuit board radiator design provides a balanced, effective centre-fed dipole, giving consistent gain and a stable vertical radiation pattern across the full frequency range.
It's internally DC grounded for lightning protection and reduced static noise, and its lightweight build makes it straightforward to install on support structures.
Key Features
- Full-band coverage (450-520MHz) means no tuning is needed across the whole range.
- Centre-fed dipole design means consistent gain and stable beamwidth at every frequency in the band.
- Internally DC grounded means better lightning protection and lower static noise.
- Lightweight fibreglass composite construction means easier mounting and handling on-site.
Applications
- Low power base stations
- RF control stations in whole-of-government UHF allocations
- Any application needing wide operating bandwidth without antenna tuning
Key Specifications
| Product Code | COD4-4552 |
| Frequency Range | 450-520MHz UHF |
| Gain | 2dBi / 2.1dBd |
| Connector | N(F) |
| Construction | White fibreglass composite PCB and aluminium tube |
| Length | 990mm |
| Mount Supported | Clamp mount (UC1, UB1) |
| VSWR | <1.5:1 |
| Power Rating | 100W |
FAQs
Does this antenna need tuning after installation?
No, the COD4-4552 is designed to cover the entire 450-520MHz band without tuning.
Is it suitable for outdoor, permanent installation?
Yes, it's internally DC grounded for lightning protection and built for reliable outdoor use on support structures.
