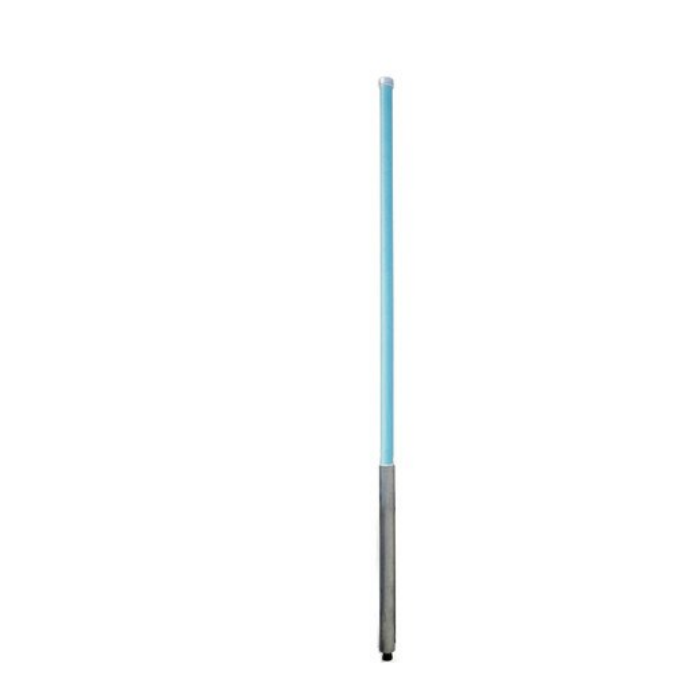

RFI COL43-490-P UHF Meander Collinear Antenna, 470-490 MHz
$2,063.56
GST Inclusive. Discounts and Shipping calculated at checkout.
Quantity
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
In stock, ready to be shipped
RFI COL43-490-P UHF Meander Collinear Antenna, 470-490 MHz
5dBd patented Meander PCB collinear with industry-leading PIM performance.
Overview
The COL43-490-P is a UHF Meander Collinear antenna covering 470-490MHz, using RFI's patented Meander PCB design that allows multiple half-wave elements to be stacked without the cable length and mechanical joint variations that typify conventional high-gain collinear construction. With dipole elements printed on a single-sided PCB, susceptibility to passive intermodulation is practically eliminated.
Placing the elements on a board removes manufacturing variations, so every antenna delivers the same pattern, tilt, and VSWR characteristics across its operating bandwidth. The antenna is internally DC grounded for lightning protection and reduction of precipitation noise.
Key Features
- 5dBd (7.1dBi) gain means strong omnidirectional coverage across the full 470-490MHz band.
- Patented Meander PCB design means optimum RF pattern stability and repeatability.
- Industry-leading PIM rating (-150dBc) means low intermodulation and low noise for optimum network performance.
- 25kW Peak Instantaneous Power rating means suitability for high-power multi-carrier deployments.
- 4.3-10 connector means a low-PIM, weatherproof termination for base station use.
Applications
- Base station sites requiring low-PIM, high-power collinear antennas
- Multi-carrier UHF deployments in the 470-490MHz band
- Sites where consistent, repeatable RF pattern performance is critical
- High Peak Instantaneous Power (PIP) applications
Key Specifications
| Product Code | COL43-490-P |
| Frequency Range | 470-490MHz UHF |
| Gain | 5dBd / 7.1dBi |
| Tuned Bandwidth | Full band |
| VSWR | <1.5:1 (14dB return loss) |
| Nominal Impedance | 50Ξ© |
| Vertical Beamwidth | 21Β° |
| Input Power | 250W |
| Peak Instantaneous Power | 25kW |
| Passive IM (2 x 20W) | -150dBc |
| Connector | 4.3-10 Female |
| Construction | Composite fibreglass sky blue radome, Ecofilm plated aluminium mounting tube |
| Mounting Area | 500mm x 48.4mm diam. Ecofilm plated aluminium |
| Suggested Clamps | 2 x UC1 |
| Torque @160km/h | 61Nm |
| Wind Gust Rating | 240km/h |
FAQs
What makes the Meander design different from standard collinear antennas?
The patented Meander PCB design prints the dipole elements on a single-sided board, eliminating the cable length and joint variations that cause performance inconsistency in conventional collinear antennas.
Is this antenna suitable for multi-carrier or high-power sites?
Yes, the COL43-490-P has an industry-leading -150dBc PIM rating and 25kW Peak Instantaneous Power rating, making it well suited to demanding multi-carrier deployments.
