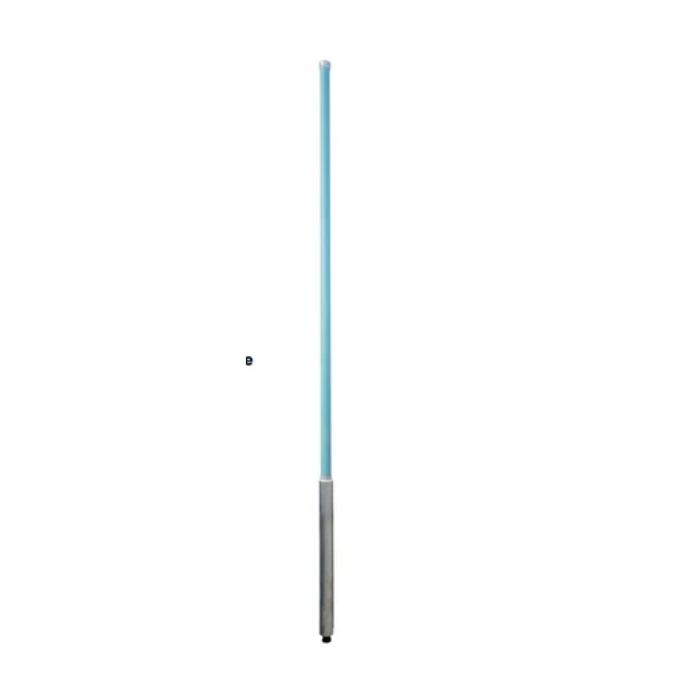

RFI COL45-420 UHF Meander Collinear Antenna, 400-420 MHz
$2,190.87
GST Inclusive. Discounts and Shipping calculated at checkout.
Quantity
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
In stock, ready to be shipped
RFI COL45-420 UHF Meander Collinear Antenna, 400-420 MHz
7dBd high-gain patented Meander PCB collinear with industry-leading PIM performance.
Overview
The COL45-420 is a high-gain UHF Meander Collinear antenna covering 400-420MHz, using RFI's patented Meander PCB design that allows multiple half-wave elements to be stacked without the cable length and mechanical joint variations that typify conventional high-gain collinear construction. With dipole elements printed on a single-sided PCB, susceptibility to passive intermodulation is practically eliminated.
This range is specifically designed for wireless applications requiring long-lasting and consistent, high performance, such as telemetry and PTP/PTMP systems. The antenna is internally DC grounded for lightning protection and reduction of precipitation noise.
Key Features
- 7dBd (9.1dBi) gain means strong omnidirectional coverage across the full 400-420MHz band.
- Patented Meander PCB design means optimum RF pattern stability and repeatability.
- Industry-leading PIM rating (-150dBc) means low intermodulation and low noise for optimum network performance.
- 25kW Peak Instantaneous Power rating means suitability for high-power multi-carrier deployments.
- 4.3-10 connector means a low-PIM, weatherproof termination for base station use.
Applications
- Telemetry and PTP/PTMP systems requiring long-lasting, consistent performance
- Base station sites requiring low-PIM, high-gain collinear antennas
- Multi-carrier UHF deployments in the 400-420MHz band
- Sites where consistent, repeatable RF pattern performance is critical
Key Specifications
| Product Code | COL45-420 |
| Frequency Range | 400-420MHz UHF |
| Gain | 7dBd / 9.1dBi |
| Tuned Bandwidth | Full band |
| VSWR | <1.5:1 |
| Nominal Impedance | 50Ξ© |
| Vertical Beamwidth | 12.5Β° |
| Input Power | 250W |
| Peak Instantaneous Power | 25kW |
| Passive IM (2 x 20W) | -150dBc |
| Connector | 4.3-10 Female |
| Construction | Ecofilm aluminium mount tube with sky blue fibreglass radome |
| Length | 3.1m |
| Mounting Area | 500mm x 48.5mm diam. Ecofilm plated aluminium |
| Suggested Clamps | 2 x UC1 |
| Torque @160km/h | 183Nm |
| Wind Gust Rating | 240km/h |
FAQs
What applications is the COL45 series designed for?
This range is specifically designed for wireless applications requiring long-lasting, consistent high performance, such as telemetry and point-to-point/point-to-multipoint (PTP/PTMP) systems.
Is this antenna suitable for multi-carrier or high-power sites?
Yes, the COL45-420 has an industry-leading -150dBc PIM rating and 25kW Peak Instantaneous Power rating, making it well suited to demanding multi-carrier deployments.
