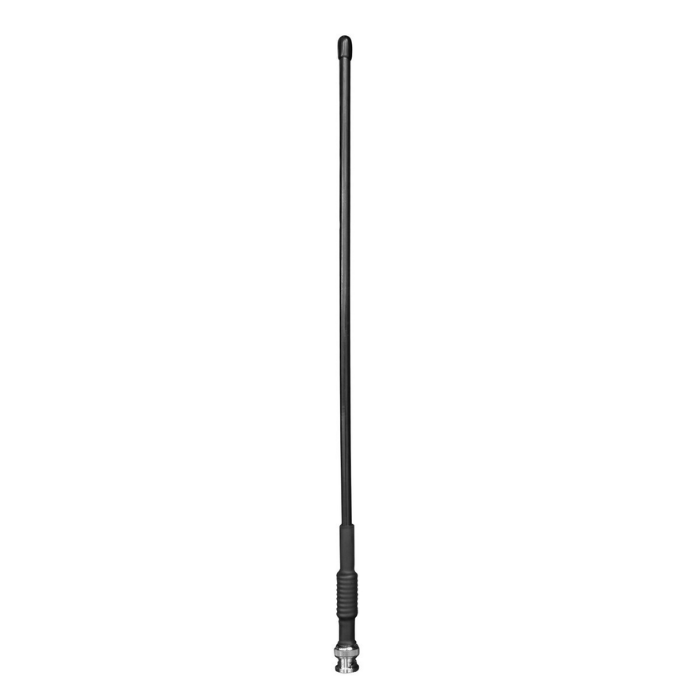

Collection of RFI CRD-BNC-68 UHF Hand Portable Antenna, 450-520 MHz in a gallery layout

RFI CRD-BNC-68 UHF Hand Portable Antenna, 450-520 MHz

$105.80

GST Inclusive. Discounts and Shipping calculated at checkout.

Quantity

Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.

In stock, ready to be shipped

RFI CRD-BNC-68 UHF Hand Portable Antenna, 450-520 MHz

Half-wave dipole design delivering a 4dB improvement over a typical 1/4 wave hand portable antenna.

Overview

The CRD-BNC-68 is a true high performance UHF hand portable antenna, specifically designed for the 450-520MHz frequency range. The CRD Series Dipoles feature a half-wave dipole design, guaranteeing reliable, clear communication in handheld applications.

The dipole element is enclosed in flexible PVC tubing for durability, and the antenna can be trimmed over the specified band using the enclosed tuning chart, allowing customisation for specific licensed frequencies.

Key Features

  • 4dB improvement over a 1/4 wave whip means better range and clarity for handheld radio users.
  • Half-wave dipole design means true high performance in handheld applications.
  • Flexible PVC tubing enclosure means durability for everyday field use.
  • Trimming capability means the antenna can be tuned to your specific licensed frequency using the enclosed chart.
  • BNC(M) termination means a secure, efficient connection to compatible handheld radios.

Applications

  • PMR, SMR, and trunking handheld radio applications
  • Field operations requiring improved handheld antenna performance
  • Two-way radios fitted with BNC(M) antenna connectors
  • Replacement or upgrade antenna for stock 1/4 wave whip antennas

Key Specifications

Product Code CRD-BNC-68
Frequency Range 450-520MHz UHF
Gain 0dBd (unity, half-wave dipole reference) — 4dB improvement over a 1/4 wave whip
Tuned Bandwidth 10MHz for VSWR 2.0:1 (approx. 2% of centre frequency)
VSWR <1.5:1 at centre frequency
Polarization Vertical
Input Power 50W
Termination BNC male with shroud
Construction Half-wave dipole element enclosed in flexible PVC tubing
Operating Temperature -40°C to 85°C
90° Flexure Cycle Life 20,000 flex cycles typical

Radio Antennas Q&A

FAQs

Can this antenna be tuned to a specific frequency?
Yes, the CRD-BNC-68 can be trimmed using the enclosed tuning chart to fine-tune performance within the specified 450-520MHz band.

What improvement does this offer over a standard whip antenna?
The half-wave dipole design provides a 4dB improvement in performance compared to a typical 1/4 wave hand portable antenna.

Download Product Brochure

Overview

A half-wave dipole UHF hand portable antenna covering 450-520MHz, with BNC(M) termination and a 4dB improvement over a typical 1/4 wave whip.

Features

4dB improvement over a 1/4 wave whip
Half-wave dipole design for true handheld performance
Trimmable using enclosed tuning chart
BNC male termination with shroud

Specifications

Frequency Range: 450-520MHz UHF

Gain: 0dBd (4dB improvement over 1/4 wave whip)

Termination: BNC male with shroud

Construction: Half-wave dipole enclosed in flexible PVC tubing

VSWR: <1.5:1 at centre frequency

Input Power: 50W

Operating Temperature: -40C to 85C
