RFI CSM550-5M-SMA 5GRN Ultra Compact Antenna, 617-5925MHz, 5m LL100, SMA(M)
$94.30
GST Inclusive. Discounts and Shipping calculated at checkout.
Quantity
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
In stock, ready to be shipped
RFI CSM550-5M-SMA 5GRN Ultra Compact Antenna, 617–5925MHz, 5m LL100 Cable, SMA Male

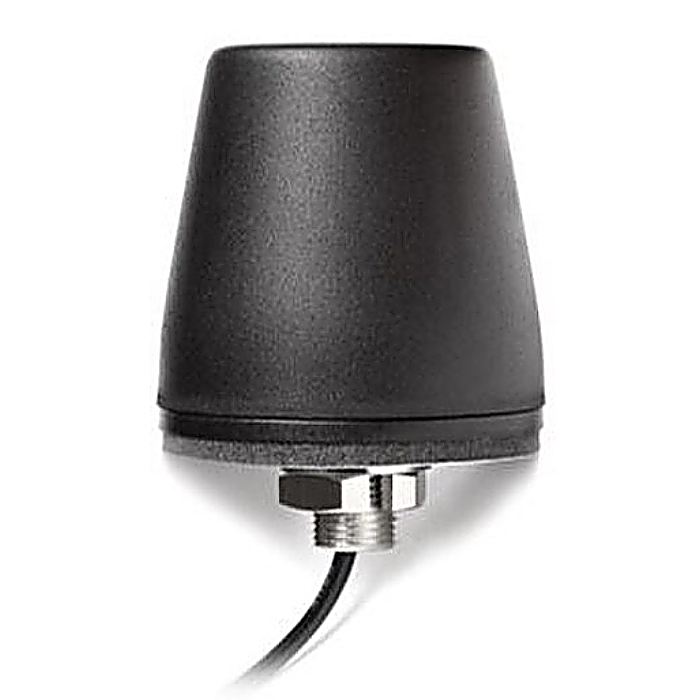

The RFI CSM550-5M-SMA is an ultra-compact, omni-directional 5G NR antenna providing excellent coverage for M2M/IoT, fixed data, and mobile applications across 617–5925MHz. Supplied with 5m LL100 low-loss cable, terminated with an SMA Male connector.
Overview

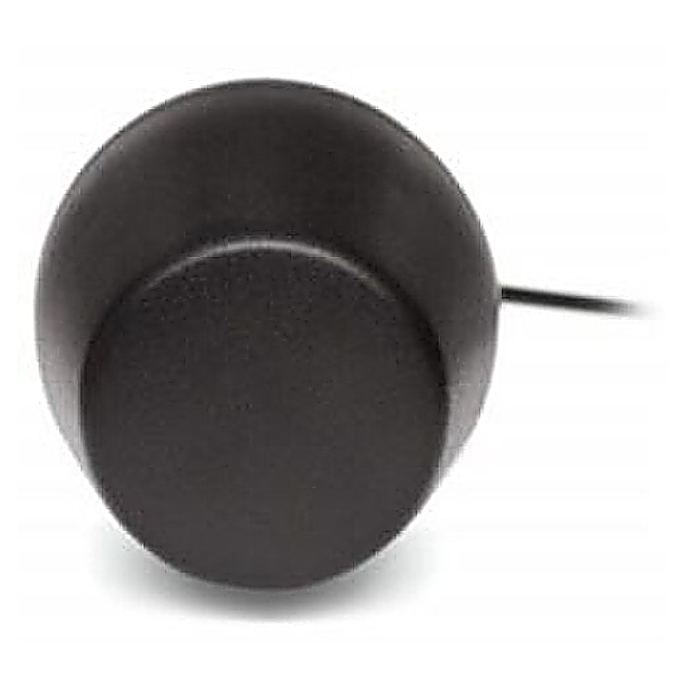

The CSM550 series is built for space-constrained installations where a discreet, weatherproof antenna is needed. Its ultra-compact housing (just 50mm diameter, 50.8mm tall) suits both indoor and outdoor applications, and it covers all major 5G, 4G LTE, and 3G cellular bands with a single antenna.

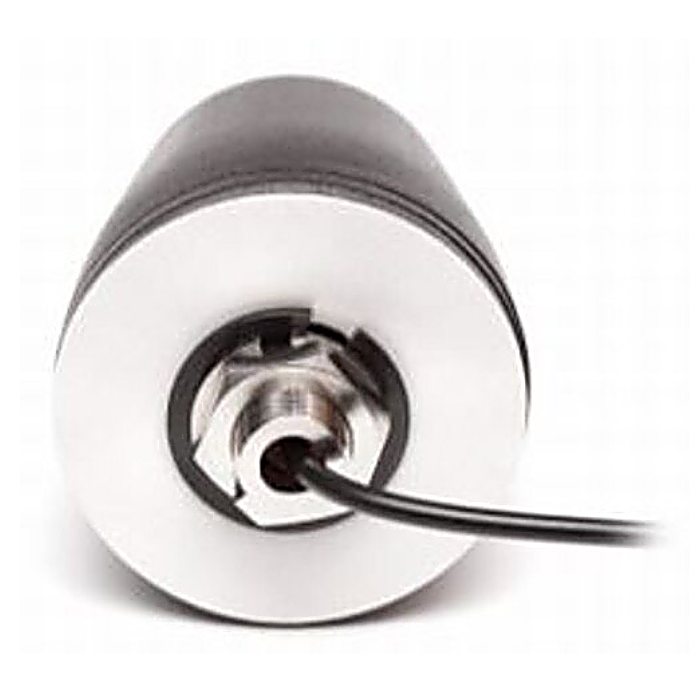

The screw mount features an anti-rotation mechanism and an integrated double-sided foam seal, giving a secure, weatherproof fit on an 11.9mm stud mount. Being ground plane independent, it performs consistently regardless of where it's mounted, without needing a large metal surface underneath.
This version is supplied with a 5-metre LL100 cable, giving you more reach for installations where the antenna needs to sit further from the router or modem.
Key Features
- Covers 617–5925MHz means one antenna supports 5G NR, 4G LTE, and 3G across every major cellular band, for future-proof connectivity.
- Ground plane independent design means consistent performance regardless of mounting location or surface.
- Ultra-compact housing (Ø50 x 50.8mm) means a discreet fit in space-constrained installations.
- IP69 weatherproof rating means reliable performance outdoors in harsh conditions.
- Screw mount with anti-rotation mechanism means a secure fit that won't loosen from vibration.
- Supplied with 5m LL100 low-loss cable and SMA Male connector means extra reach for installations where the router or modem sits further from the antenna.
Applications
- M2M and IoT devices
- Fixed wireless data applications
- Vehicle and fleet telematics
- Remote monitoring and industrial equipment
- Indoor and outdoor installations where space is limited
What's in the Box
- 1 x RFI CSM550-5M-SMA ultra-compact antenna
- 5m LL100 low-loss cable, fitted with SMA Male connector
Complete Your Setup

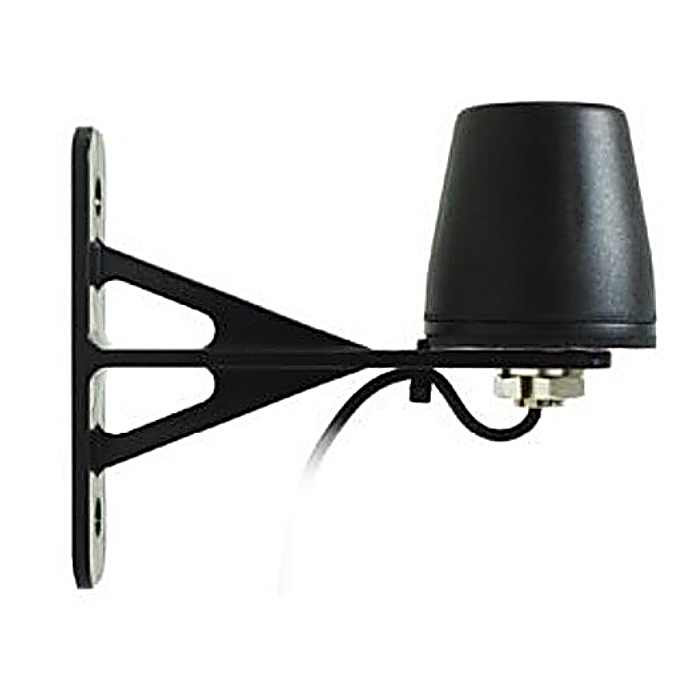

Need to mount this antenna on a wall or flat surface instead of using its built-in screw mount? See the RFI CSM500-PWMB wall mounting bracket, a genuine RFI accessory compatible with this antenna.
Key Specifications
| Brand | RFI |
| Model | CSM550-5M-SMA |
| Frequency / Gain (peak) | 617-960MHz: 2.9dBi / 1427-2690MHz: 2.1dBi / 3300-5000MHz: 0.5dBi / 5150-5925MHz: -1.0dBi |
| VSWR | <2.3:1 / <2.1:1 / <2.0:1 / <1.6:1 (by band, as above) |
| Power handling | 25W |
| Impedance | 50 ohms |
| Polarisation | Linear |
| Radiation pattern | Omni-directional |
| Dimensions | Ø50 x 50.8mm |
| Materials | ASA radome, Zamak base, double-sided foam gasket |
| Colour | Black |
| Mounting | Screw mount, 11.9mm stud, anti-rotation mechanism |
| Operating temperature | -40 to +85°C |
| Certification | RoHS / IP67 / IP69 |
| Cable | 5m LL100 low-loss |
| Connector | SMA Male |
Download the RFI CSM550 Series specification sheet (PDF)
Other Options in This Series
RFI also makes this antenna with a 1.5m LL100 cable (SMA Male), see CSM550-1.5M-SMA. RFI also offers 5m N Male and 5m No Connector variants, and a 1.5m FME Female variant, none of which are currently listed in this store.
Video
No product video currently available for this model.
Why Buy From Mobile Systems Limited?
Mobile Systems Limited supplies professional cellular connectivity solutions throughout New Zealand. Our experienced team can assist with:
- Antenna selection for space-constrained installations
- IoT and M2M connectivity solutions
- Vehicle router and modem installations
- Industrial networking solutions
- Cellular signal optimisation
- Ongoing technical support
Whether you're deploying a single IoT device or a fleet of connected equipment, we'll help you choose the right antenna for your application.
Frequently Asked Questions
What frequencies does the CSM550-5M-SMA support?
The antenna covers 617–5925MHz, supporting 5G NR, 4G LTE, and 3G cellular bands.
Does it need a large ground plane to work?
No. It's a ground plane independent design, so it performs consistently regardless of the mounting surface.
Is it suitable for outdoor use?
Yes. It carries an IP69 weatherproof rating and operates from -40°C to +85°C.
What connector does it use?
It's supplied with a 5-metre low-loss cable terminated with an SMA Male connector.
How is it mounted?
It uses a screw mount on an 11.9mm stud, with an anti-rotation mechanism and integrated double-sided foam seal for a secure, weatherproof fit.
Can Mobile Systems Limited install this antenna?
Yes. We supply and install professional cellular antennas, routers, and complete connectivity solutions throughout New Zealand.
