Viewtech VTRIFK Radar Interface Kit, Video Overlay
$688.85 inc GST ($599.00 exc GST)
Discounts and Shipping calculated at checkout.
Quantity
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
Available to order. We'll confirm dispatch timing when you order.
Overlay Radar Warnings on Your Camera Image

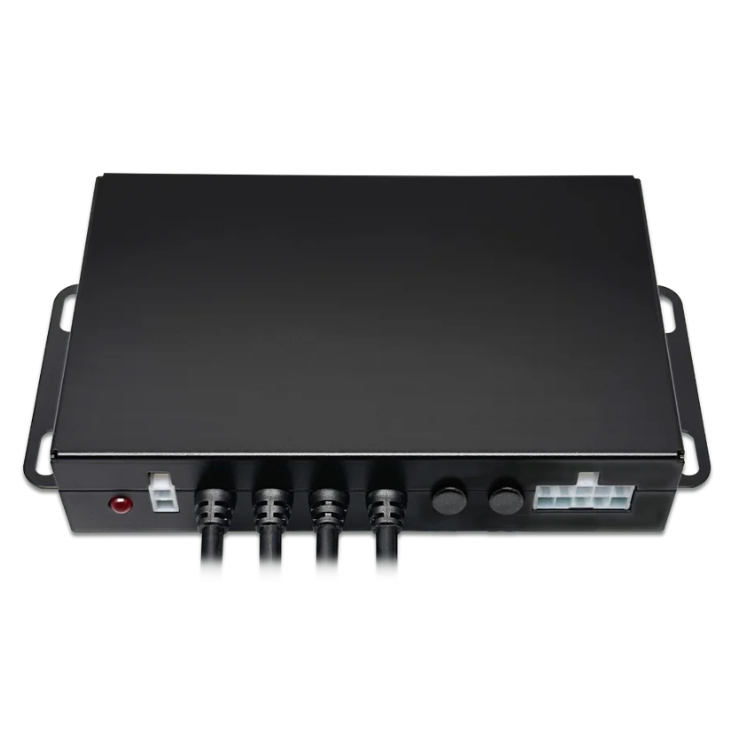

The Viewtech VTRIFK Radar Interface Kit combines a radar sensor with a conventional AHD or CVBS camera and monitor system. It overlays visual radar warnings onto the camera image and adds an audible alert, so the operator sees both the view behind the vehicle and the obstacle warning in one place, with fewer separate displays in the cab.
The kit works with existing Viewtech AHD/CVBS cameras and Viewtech monitors, and pairs with the VTR4M or VTR8M programmable radar sensors (sold separately).
Key features
- On-screen radar overlay with audible warning.
- Two camera inputs with automatic detection of video format.
- Trigger inputs for reverse gear or other vehicle signals.
- External alarm output.
- 12 to 32 V DC supply for cars, trucks and machinery.
Specifications
- Video formats: AHD 1080p, TVI 1080p, AHD 720p, TVI 720p, CVBS 960H (NTSC/PAL)
- Power: 12 to 32 V DC
- Inputs: 2 x camera, 2 x trigger, tacho
- Outputs: A/V out, external alarm, trigger out
- Radar sensor: VTR4M or VTR8M (sold separately)
Talk to the MSL team about the right radar set-up for your vehicle or machine.
