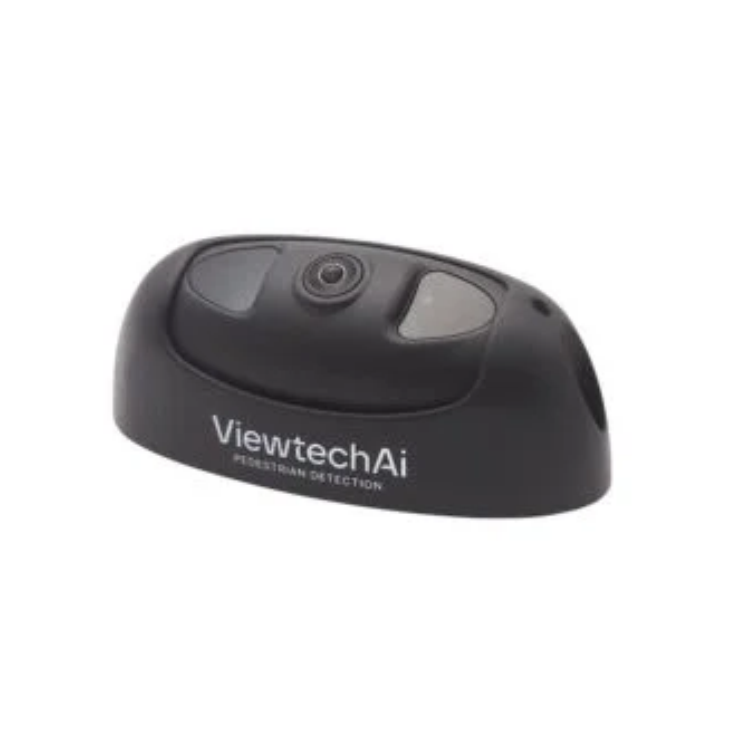

ViewtechAi VT638AI3 Side Mount AI Camera, 1080p 170° IP69K
$1,068.35 inc GST ($929.00 exc GST)
Discounts and Shipping calculated at checkout.
Quantity
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
Available to order. We'll confirm dispatch timing when you order.
AI Side Mount Blind Spot Camera
1080p, 170° field of view, IP69K, with AI pedestrian detection.
Overview
Side blind spots are where turning trucks and machines catch people out. The ViewtechAi VT638AI3 mounts on the side of the vehicle with a very wide 170° view and uses AI to flag people, cyclists and vehicles alongside, alerting the driver in real time.
It is IP69K rated and works with any Viewtech monitor, so it can be added to an existing Viewtech system.
Key Features
- 170° field of view means coverage along the full side of the vehicle.
- Side mount design means it sits where turning blind spots actually are.
- AI pedestrian detection with no tags or vests means every person on site is detected, including visitors and contractors, without wearable hardware.
- Detects partly hidden people means alerts still fire when someone is half behind a pallet, bin or roller door.
- Audible and on-screen alerts means the operator hears an alarm and sees the person boxed on any Viewtech monitor.
- Configurable alarm output means the camera can trigger a strobe, pedestrian alarm or machine control input on detection.
- Vehicle detection option means it can be set to detect people, vehicles, or both.
- IP69K and ISO 16750-3 vibration rated means it is built for hot washdowns and rough machinery.
- Fleetview compatible means near-miss events can be recorded and reviewed remotely for safety audits.
Applications
- Trucks and turning heavy vehicles
- Buses and coaches
- Loaders and plant
- Refuse and waste vehicles
What's in the Box
- 1 x VT638AI3 camera
- Monitor, cable and accessories sold separately
Complete Your Setup
ViewtechAi accessories are available to order: the VTAIMO2 multi-output loom adds up to three independent detection zones and an alarm input (for example, detect only in reverse), the VTAIWF2 WiFi adaptor for setup, the VTAIPR power injector, and the VT-PA30 pedestrian alarm and strobe. Ask us which you need.
Pair with the Viewtech 7 inch HD monitor, or record near-miss events with the Viewtech Fleetview 4CH mobile DVR. Our technicians install and calibrate ViewtechAi systems across the greater Bay of Plenty.
Key Specifications
| Product Code | VT638AI3 |
| Resolution | 1080p |
| Field of View | 170° |
| Mount | Side |
| Detection | People, cyclists and vehicles (selectable) |
| Alerts | Audible alarm and on-screen bounding box on Viewtech monitors |
| Water Rating | IP69K |
| Vibration | ISO 16750-3 |
| Operating Temperature | -20°C to 70°C |
| Warranty | 3 years, Viewtech |
FAQs
Where should the VT638AI3 be mounted?
The VT638AI3 is designed to mount on the side of the vehicle to cover the turning blind spot, where its 170° view runs along the vehicle.
Do workers need to wear a tag or vest to be detected?
No, ViewtechAi cameras use vision-based AI to recognise people, so no RFID tag, transponder or high-vis vest is needed.
Can ViewtechAi trigger an external alarm or stop a machine?
Yes, ViewtechAi cameras output a configurable high or low signal on detection, which can drive a pedestrian alarm, strobe, relay or machine control input.
Will it work with my existing Viewtech monitor?
Yes, ViewtechAi cameras work with Viewtech monitors and with Viewtech Fleetview recorders.
What warranty does ViewtechAi carry?
ViewtechAi cameras carry a 3 year Viewtech warranty.
