Chiayo Focus 505 Portable PA System - with receiver & bluetooth
$1,248.99
GST Inclusive. Discounts and Shipping calculated at checkout.
Quantity
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
In stock, ready to be shipped

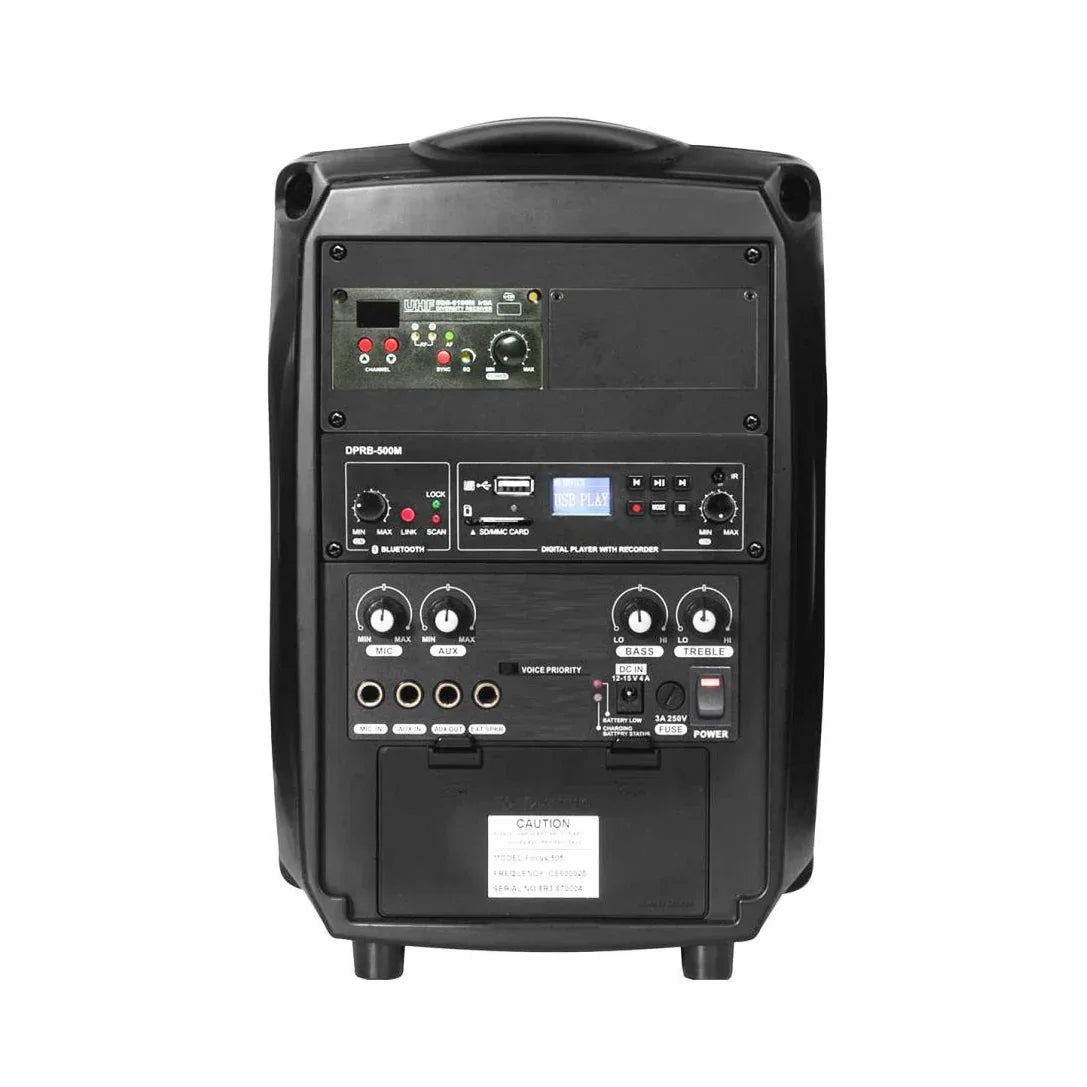

Chiayo Focus 505 Portable PA System, with Receiver and Bluetooth
A complete wireless sound system with Bluetooth and USB recording built in.
Overview
This Focus 505 model adds a built-in Bluetooth receiver, digital recorder, and playback from USB sticks or SD cards to the standard Focus 505. It uses the IrDA direct addressing feature and SDR-5000 modules, making it compatible with the repeater system, StagePro, and Challenger PA systems.
It's a complete PA system supplied with a 100-channel wireless IrDA microphone receiver (with the option to fit a second), covering a medium-sized group of people, think meeting halls and tennis-court-sized areas, with hi-fi sound characteristics of 50Hz-20kHz and very low distortion.
Key Features
- Class D amplifier, approx. 50W means coverage for up to 200 people or a tennis-court-sized area.
- Built-in Bluetooth receiver means wireless audio streaming, remotely operable.
- USB/SD digital recorder and player means on-the-spot recording and playback.
- 100-channel wireless IrDA mic receiver means reliable reception with anti-interference Pilotone circuitry.
- Rechargeable lead-acid battery means cable-free operation anywhere, with smart charging and an LED indicator.
- Individual volume controls means separate control for mic, aux, bass, and treble.
- Stand and wall mountable means flexible setup with the ST-40 stand or SR-40 wall mount.
Applications
- Meeting halls and conference rooms
- Sports coaching (tennis-court-sized areas)
- Indoor and outdoor events needing wireless mic coverage
Key Specifications
| Product Code | F505RB |
| Output Power | 50W, 30W RMS at 4 ohm (Class D) |
| Speaker | 6.5 inch full range |
| Frequency Response | 50Hz-20kHz +/-3dB |
| Power Supply | 100-240V AC / 15V DC, 4.3A |
| Battery | 12V 2.9A lead-acid, 5-6 hours music or 10-12 hours speech, approx. 4 hours to charge |
| Dimensions | 313mm (H) x 220mm (W) x 215mm (D) |
| Weight | 5kg |
| Approvals | CE, RoHS, FCC, ICID |
What to consider when purchasing a PA System
FAQs
Can I use two wireless microphones at once?
Yes, fit a second wireless mic receiver to run two microphones simultaneously.
How long does the battery last?
5-6 hours for music, 10-12 hours for speech, with about 4 hours to fully recharge.
Can I mount this on a wall instead of a stand?
Yes, it's compatible with the ST-40 tripod stand or the SR-40 wall mount.
