GME AE4018K1 970mm Elevated-Feed Antenna (6.6dBi Gain)
$249.00
GST Inclusive. Discounts and Shipping calculated at checkout.
Quantity
Pickup available from the Mobile Systems Showroom: 1/14 Portside Drive, Mount Maunganui. We will notify you when your order is ready for collection.
In stock, ready to be shipped

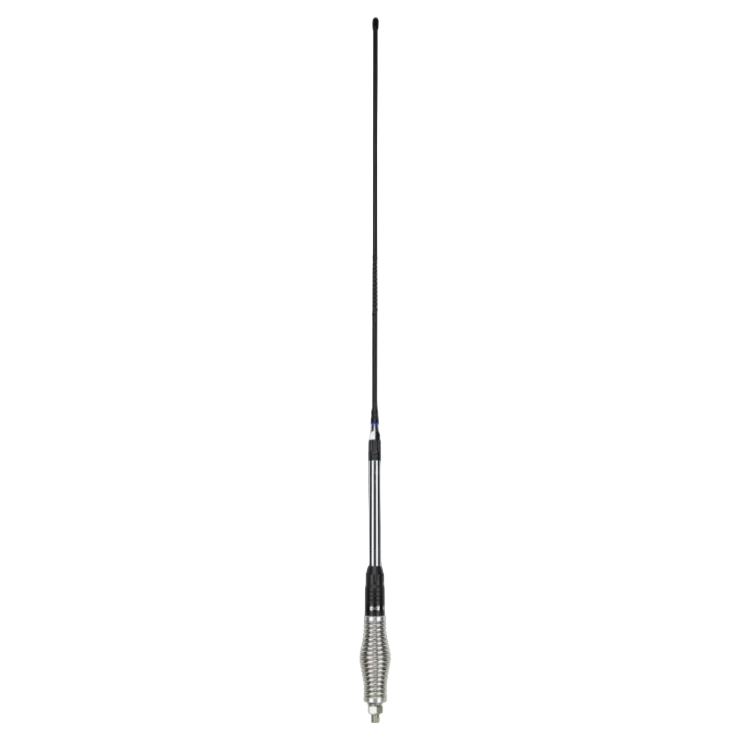

970mm Elevated-Feed Antenna (6.6dBi Gain)
What this is: the AE4018K1 is GME's elevated-feed UHF CB antenna kit, built for high performance in virtually any mounting position, on a bull bar, gutter, or fender.
Overview
The GME AE4018K1 is a 970mm elevated-feed UHF CB antenna providing 6.6dBi gain for great all-round performance. The elevated-feed design raises the radiating element above the vehicle roof or other obstructions, giving a strong, omni-directional pattern regardless of mounting position.
The 6.6dBi fibreglass whip can be swapped for a smaller 2.1dBi option for a broader radiation pattern in hilly or built-up terrain, a popular choice for 4WDs and fleet vehicles.
Key Features
- Elevated-feed design means strong, omni-directional performance mounted on a bull bar, gutter, or fender.
- Fibreglass whip with black heat shrink and a heavy duty braid copper element means durability without the weight of stainless steel.
- Barrel style stainless steel spring means real vibration and impact resistance.
- Ground independent design means it mounts on virtually any surface.
- Pre-terminated FME connector with an included FME to PL259 adaptor means straightforward installation.
- 6.6dBi gain means strong signal for open country and rural work, swappable for a 2.1dBi whip in hilly terrain.
Applications
- 4WD vehicles and fleet vehicles needing a bull bar, gutter, or fender mount
- Rural and open-road driving where 6.6dBi gain suits the terrain
- Utes and work trucks running UHF CB for site or paddock communications
What's in the Box
- 6.6dBi antenna whip (AE4018)
- Elevated-feed base and lead assembly (ABL017)
- Medium duty spring (AS002)
- FME to PL259 adaptor (AD503)
Note: these individual components are not currently stocked separately by MSL, so we cannot offer a genuine spare-parts cross-sell for this kit yet.
Key Specifications
| Spec | Detail |
|---|---|
| Frequency | 477MHz (UHF CB) |
| Length | 970mm |
| Gain | 6.6dBi (swappable for 2.1dBi whip) |
| Whip | Fibreglass, black heat shrink, heavy duty braid copper element |
| Spring | Barrel style stainless steel, medium duty |
| Design | Ground independent, elevated feed |
| Connector | Pre-terminated FME, with FME to PL259 adaptor included |
| Warranty | 1 year |
FAQ
Does the AE4018K1 include a mounting bracket?
No, the box is whip, base and lead, spring, and adaptor only.
Can I swap the whip for a lower-gain option?
Yes, the 6.6dBi whip can be swapped for a 2.1dBi option for a broader radiation pattern in hilly or built-up terrain.
Where can this be mounted?
The elevated-feed, ground independent design suits bull bar, gutter, or fender mounting, virtually any position on the vehicle.
What warranty comes with the AE4018K1?
It carries GME's standard 1 year warranty.
